Short Engineering Answer

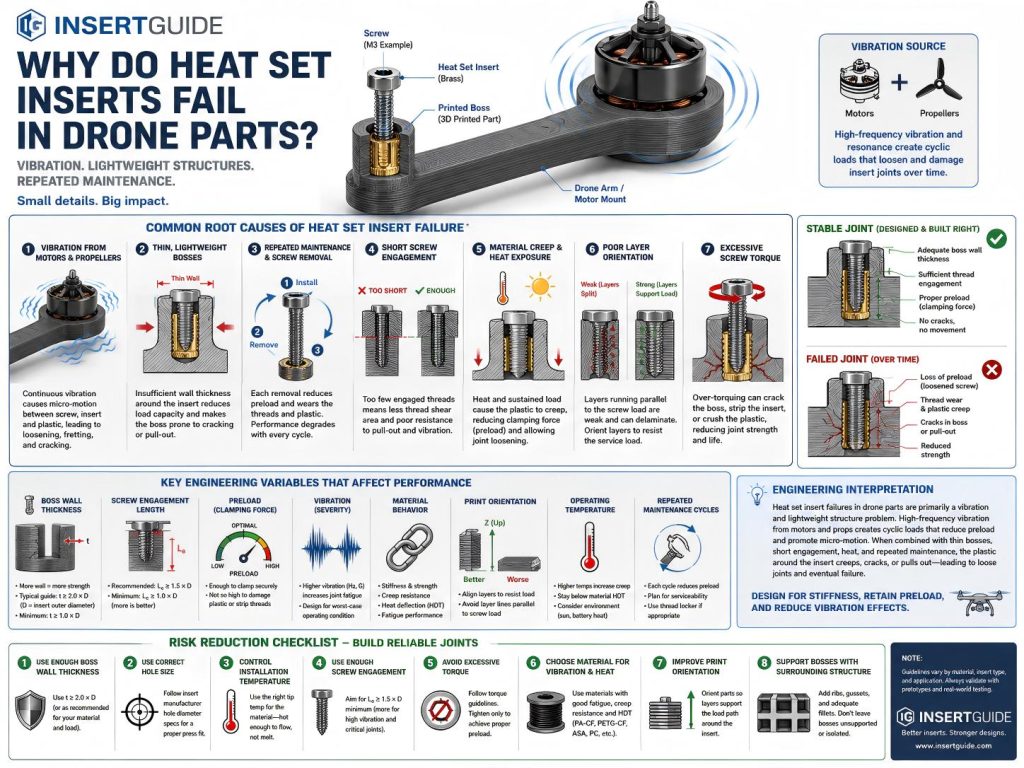

Heat set inserts fail in drone parts when the printed fastening structure cannot maintain preload, torque resistance, or boss support under vibration, lightweight geometry, repeated maintenance, and dynamic flight loads.
Drone parts often use thin walls, compact bosses, lightweight materials, and repeated screw access. These conditions can make heat set insert joints more sensitive to preload loss, insert spin, boss cracking, pull-out failure, and layer separation.
The insert itself is usually not the first weak point. The surrounding printed boss, material behavior, screw engagement length, and vibration load path usually control long-term reliability.
A heat set insert can work well in drone parts, but the boss must be designed for vibration and serviceability, not only for initial installation.
Root Causes
Vibration From Motors and Propellers
Drone frames and mounts are exposed to continuous vibration from motors, propellers, and flight movement.
If the screw joint has weak preload, short engagement, poor insert fit, or thin boss support, vibration can gradually reduce joint stability. The insert may loosen, spin, or begin moving inside the printed boss.
Vibration rarely acts alone. It usually exposes weaknesses in hole size, boss design, material behavior, and screw torque control.
Thin Lightweight Bosses
Drone parts are often designed to be light.
Reducing weight can lead to thin bosses, narrow walls, or minimal material around inserts. This saves mass but reduces radial support around the insert.
A thin boss may hold during installation but deform, crack, or lose support during flight vibration or repeated screw tightening.
In drone parts, boss wall thickness should be treated as a structural requirement, not just a local detail around a hole.
Repeated Maintenance and Screw Removal
Drone parts are often opened, repaired, tuned, or replaced.
Each screw removal and reinstallation transfers torque into the insert and surrounding plastic. Over time, repeated assembly can weaken the plastic-to-insert interface, reduce preload stability, or increase insert movement.
This is especially important for motor mounts, camera brackets, battery covers, electronics trays, and frame accessories that are serviced frequently.
Short Screw Engagement
Short screws are common in lightweight drone designs, but short screw engagement can reduce joint stability.
If the screw engages too few threads in the insert, the load is concentrated over a smaller region. This can reduce preload reliability and increase local stress during vibration.
Enough screw engagement helps the joint resist movement, torque variation, and repeated assembly cycles.
Material Creep and Heat Exposure
Drone parts may experience heat from motors, electronics, batteries, or enclosed compartments.
PETG and similar materials can creep under sustained preload, especially when heat and vibration are present. As the plastic relaxes, screw preload can drop and the insert joint may become less stable.
PLA may hold shape under moderate load but may crack more easily under stress concentration or impact. Material choice should be matched to temperature, vibration, and expected service cycles.
Poor Layer Orientation
Drone parts often carry bending, vibration, and impact loads.
If the insert load acts across weak layer lines, the printed boss may separate or crack around the insert. This can reduce pull-out strength and increase the risk of layer separation.
A heat set insert improves the thread interface, but it does not remove the directional strength limits of FDM printed parts.
Excessive Screw Torque
Over-tightening screws in drone parts can damage the printed boss.
High torque may create strong initial clamping force, but it can also deform the boss, overstress the insert interface, or start cracks in thin printed features.
For drone parts, controlled torque is often better than simply tightening harder.
Related Engineering Variables
Heat set insert reliability in drone parts depends on several connected variables:
- Motor vibration
- Screw preload
- Screw engagement length
- Boss wall thickness
- Boss stiffness
- Pilot hole size
- Insert depth
- Material creep
- Operating temperature
- Repeated maintenance cycles
- Layer adhesion
- Print orientation
- Pull-out load
- Torque load
- Impact and landing loads
- Weight reduction geometry
These variables should be evaluated together. A drone insert joint may work in a static bench test but fail after flight vibration, repeated maintenance, heat exposure, or impact load.
Drone fastening design is a dynamic load problem, not only a thread durability problem.
Engineering Interpretation
Heat set insert failure in drone parts is usually a vibration and lightweight structure problem.
The failure may appear as:
- Insert loosening from preload loss
- Insert spin from reduced torque resistance
- Pull-out from axial load or weak boss support
- Boss cracking from thin walls or over-tightening
- Layer separation from poor print orientation
- Torque loss from material creep and vibration
These failure modes often overlap.
For example, a thin PETG boss may first lose preload under vibration. Then the screw joint becomes loose. After repeated maintenance, the insert interface weakens further and may spin or pull out.
This is why drone parts need fastening structures designed for motion, service access, and lightweight constraints at the same time.
How to Reduce the Risk
To reduce heat set insert failure in drone parts:
- Use enough boss wall thickness around each insert.
- Avoid extremely thin unsupported bosses.
- Use the correct pilot hole size for the printed material.
- Control installation temperature.
- Avoid overheating the boss during insert installation.
- Use enough screw engagement length.
- Avoid excessive screw torque.
- Design for repeated screw removal if maintenance is expected.
- Choose material based on vibration, heat, and impact conditions.
- Improve print orientation and layer adhesion around insert bosses.
- Support bosses with surrounding ribs or thicker local geometry when possible.
- Reduce vibration transfer where possible.
A reliable drone insert joint is not just a metal thread in a lightweight part. It is a supported fastening structure designed for vibration, service cycles, and dynamic load.
Related InsertGuide Pages
- Why Do Heat Set Inserts Fail Under Vibration?
- Why Does Repeated Assembly Weaken Heat Set Inserts?
- Why Does Screw Preload Drop in 3D Printed Insert Joints?
- Why Do Heat Set Inserts Become Loose Over Time?
- Torque Resistance of Heat Set Inserts in 3D Printed Parts
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- Layer Adhesion and Heat Set Insert Strength in 3D Printed Parts
- How to Design Bosses for Heat Set Inserts
- Heat Set Insert Hole Size Guide
FAQ
Are heat set inserts good for 3D printed drone parts?
Yes, heat set inserts can work well in drone parts, especially for repeated maintenance and stronger threads. However, the boss must be designed for vibration, screw preload, material behavior, and lightweight structure.
Why do inserts loosen in drone parts?
Inserts loosen in drone parts when vibration, repeated screw removal, preload loss, thin boss support, short screw engagement, or material creep weakens the plastic around the insert.
Can vibration cause heat set inserts to spin?
Yes. If the insert fit is weak or preload has already dropped, vibration can increase small movements at the plastic-to-insert interface and eventually lead to insert spin or loosening.
