Why Does My Heat Set Insert Spin Inside 3D Printed Parts?

by

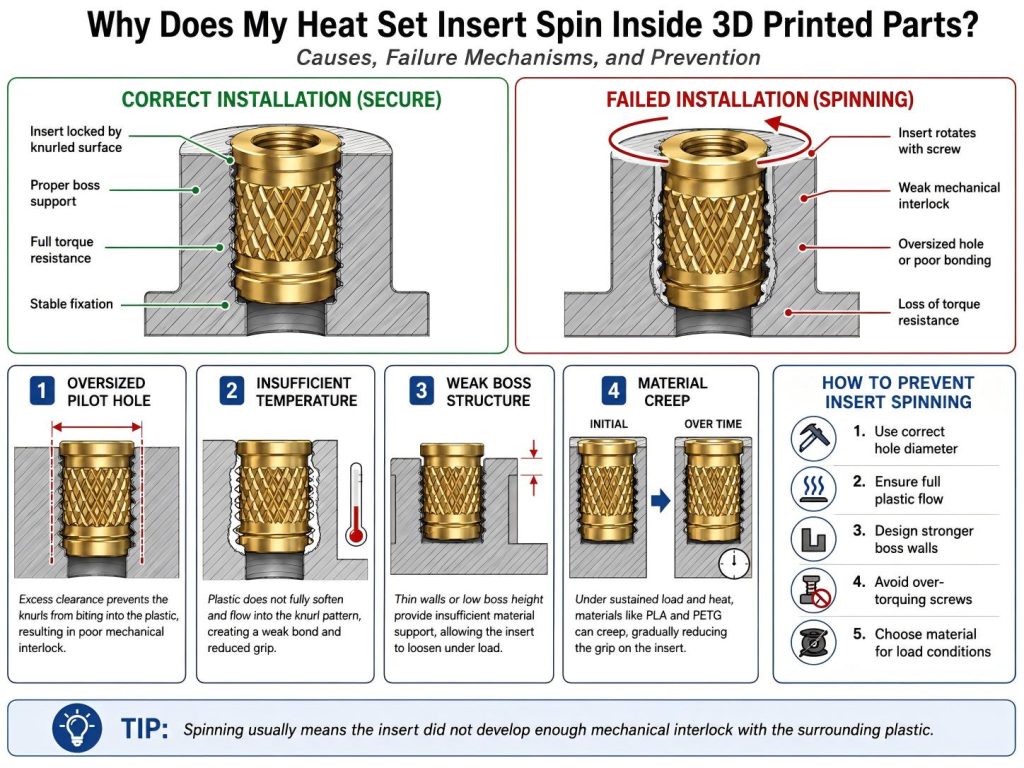

Heat set insert rotating inside 3D printed plastic part showing rotational failure and loss of grip

A heat set insert spinning inside a 3D printed part is a rotational failure where the insert loses its mechanical grip and starts turning with the screw.

This usually indicates that the knurled surface of the insert did not properly bond with the melted plastic during installation.

Once spinning occurs, the joint loses all torque resistance and becomes unusable.

What Does a Spinning Heat Set Insert Look Like?

Common symptoms:
  • Screw rotates without tightening
  • Insert turns inside the plastic boss
  • No torque resistance during fastening
  • Joint loosens after repeated use

Cause 1: Oversized Pilot Hole

If the hole is too large, the molten plastic cannot fully fill the knurled structure of the insert.

This leads to insufficient mechanical interlock and eventual spinning failure.

Reference:

Heat Set Insert Hole Size Guide

Cause 2: Insufficient Installation Temperature

If the insert is not heated enough, the plastic does not fully flow into the knurl pattern.

This weak bonding is one of the most common causes of rotational failure.

Reference:

Installation Temperature Guide

Cause 3: Weak Boss Structure

Thin walls or small boss diameter reduce resistance to torsional load.

Under screw torque, the insert begins to rotate inside the part.

Reference:

Boss Design Guide

Cause 4: Material Creep (PETG / PLA)

  • PLA: brittle, may crack instead of holding torque
  • PETG: flexible, may slowly lose grip over time

Material selection directly affects long-term torque resistance.

How to Prevent Heat Set Inserts from Spinning

Engineering best practices:
  1. Use correct hole diameter for proper interference fit
  2. Ensure full plastic flow during installation
  3. Design thick and rigid boss structures
  4. Avoid over-torquing screws during assembly
  5. Match material to expected load conditions
