A heat set insert sitting too deep after installation is a common assembly issue in 3D printed parts that directly affects thread engagement and joint strength.
When the insert is pushed too far below the surface, it reduces effective thread engagement length and may weaken the mechanical connection.
This usually happens due to uncontrolled installation depth or excessive heat softening the surrounding plastic.

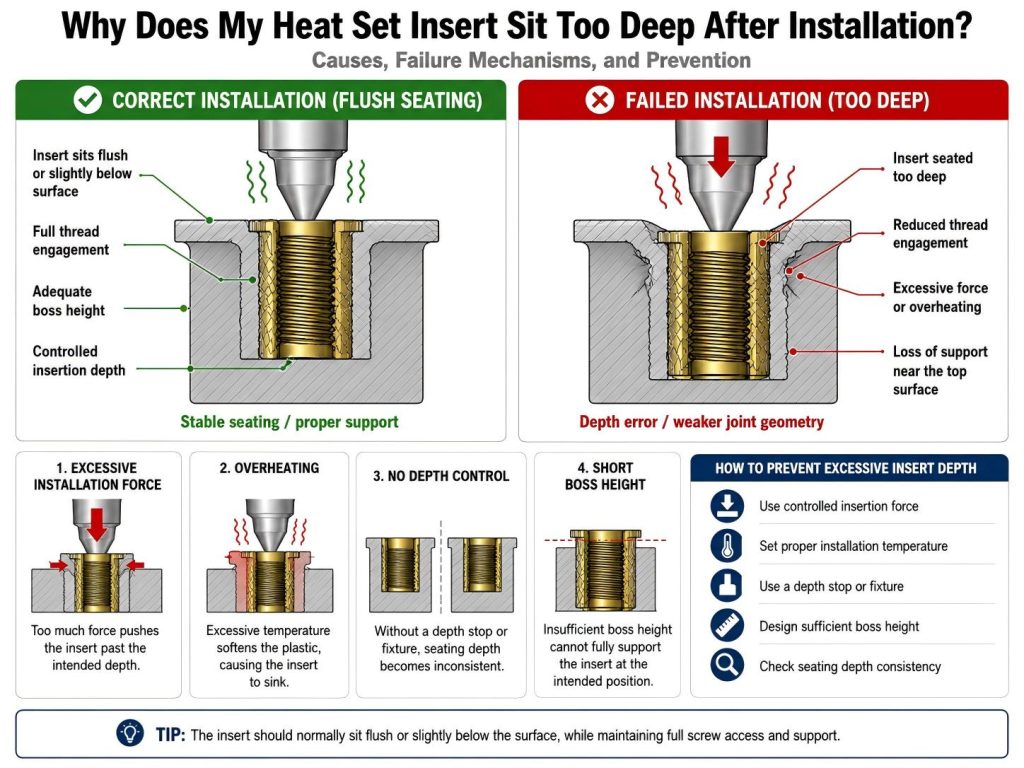

What Does a Heat Set Insert Sitting Too Deep Look Like?
- Insert sits below surface level
- Screw engagement feels shorter than expected
- Reduced torque resistance
- Uneven load distribution inside boss
Cause 1: Excessive Installation Force
Applying too much downward force during insertion can push the insert beyond the intended seating depth.
Once the plastic is softened, it offers little resistance, allowing over-penetration.
Cause 2: Overheating During Installation
When the plastic becomes too soft, the insert can sink deeper than intended under its own pressure.
This is especially common in PLA, which loses structural rigidity quickly under heat.
Reference:
Heat Set Insert Installation Temperature Guide
Cause 3: No Depth Control During Installation
Without a physical stop or controlled fixture, insertion depth depends entirely on operator judgment.
This leads to inconsistent seating depth between parts.
Cause 4: Weak Boss Geometry
If the boss height is too low, the insert may appear “too deep” even when properly installed.
Design plays a critical role in perceived seating depth.
Reference:
How to Prevent Heat Set Inserts from Going Too Deep
- Control insertion force and avoid over-pressing
- Use consistent installation temperature
- Add physical depth stop if needed
- Design sufficient boss height for full seating
- Standardize installation process across builds
