Short Engineering Answer

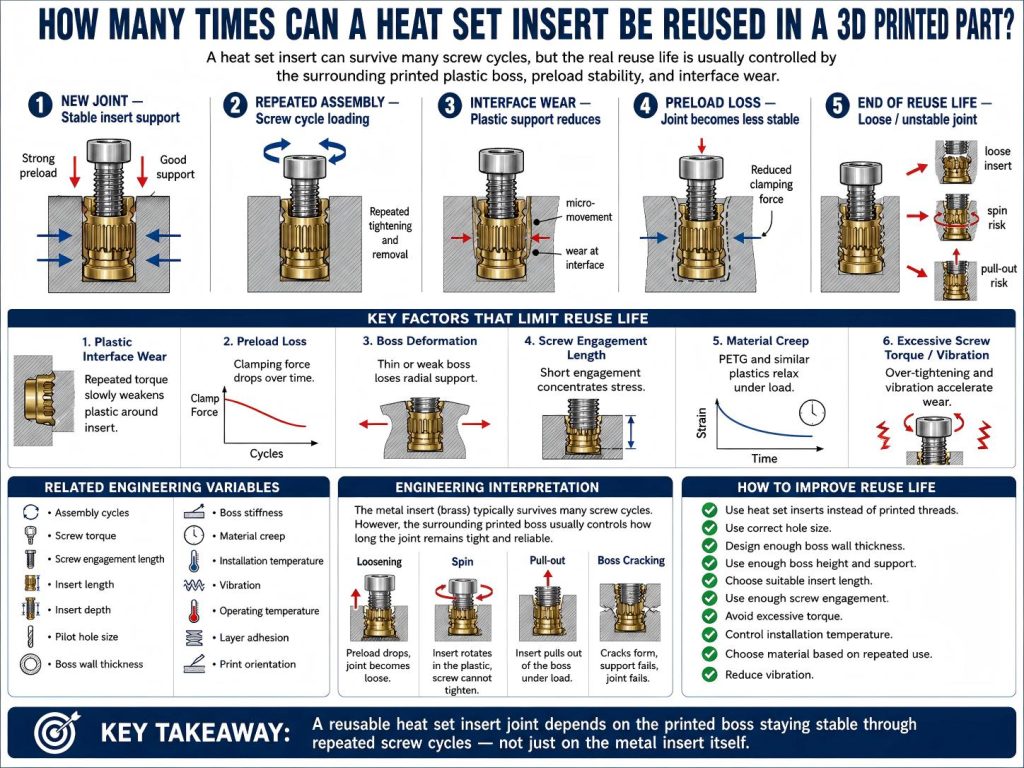

A heat set insert can often survive many screw installation and removal cycles, but the surrounding 3D printed plastic usually controls the real reuse life.
The metal insert threads are usually stronger and more wear-resistant than printed plastic threads. However, repeated screw assembly still applies torque, preload, compression, and small movement to the plastic-to-insert interface. Over time, the printed boss may deform, lose preload, crack, or allow the insert to loosen.
There is no universal number of reuse cycles that applies to every 3D printed part. Reuse life depends on material, boss geometry, hole size, insert depth, screw engagement length, tightening torque, vibration, operating temperature, and how much load the joint carries.
A heat set insert improves repeated assembly durability, but it does not make the printed structure unlimited-use.
Root Causes That Limit Reuse Life
Plastic Interface Wear
The metal insert may remain intact while the surrounding plastic slowly weakens.
Each time the screw is tightened or removed, torque is transferred through the insert into the printed boss. If the insert interface is well supported, this load may be handled for many cycles. If the boss is weak or the insert fit is poor, small movement can gradually wear or deform the plastic around the insert.
This can reduce torque resistance and make the insert feel less stable after repeated use.
Preload Loss
A screw joint depends on preload to stay tight.
Repeated tightening and loosening can reduce preload consistency, especially when the printed material compresses, creeps, or relaxes. The screw may still engage the insert, but the joint may no longer clamp parts together as firmly as it did when new.
This is common in PETG parts, thin bosses, high-torque joints, and serviceable assemblies exposed to heat or vibration.
Boss Deformation
The printed boss must remain dimensionally stable.
If the boss wall is thin, unsupported, too close to an edge, or exposed to high screw load, it may slowly deform after repeated cycles. Boss deformation can reduce radial support around the insert.
Once radial support is reduced, the insert may loosen, spin, or pull out more easily.
Reuse life is often limited by boss stability rather than insert thread wear.
Screw Engagement Length
Screw engagement length affects how repeated loads are distributed.
If the screw engages too few threads, each assembly cycle concentrates stress in a smaller region. This can make the joint more sensitive to torque variation and interface movement.
Enough screw engagement helps distribute load through the insert and reduces stress concentration during repeated assembly.
Material Creep and Relaxation
Different 3D printing materials behave differently during reuse.
PETG can creep under sustained preload, which may reduce long-term clamping force. PLA is stiffer, but it may crack more easily under repeated stress or radial pressure. ABS may handle heat and deformation better in some applications, but still depends on proper boss design and installation quality.
The insert may be reusable, but the material around it may not behave the same after many cycles.
Excessive Screw Torque
Over-tightening reduces reuse life.
A screw tightened beyond what the printed boss can support may deform the plastic, damage the insert interface, or create cracks around the boss. Repeating this cycle makes the problem worse.
More torque does not always create a more reliable joint. For reusable parts, controlled torque is more important than maximum tightening force.
Vibration After Reassembly
Many parts that are opened repeatedly are also exposed to vibration.
Drones, RC cars, robotics assemblies, fixtures, printer parts, and electronics enclosures may be serviced many times and then exposed to motion or dynamic loading. If the insert joint has already lost preload from repeated assembly, vibration can accelerate loosening or insert movement.
Repeated assembly and vibration should be treated as connected design conditions.
Related Engineering Variables
Reusable heat set insert joints depend on several connected variables:
- Number of assembly cycles
- Screw tightening torque
- Screw engagement length
- Insert length
- Insert outer diameter
- Insert depth
- Pilot hole size
- Boss wall thickness
- Boss stiffness
- Material creep
- Installation temperature
- Plastic flow around knurling
- Vibration
- Operating temperature
- Layer adhesion
- Print orientation
The insert itself may remain usable for many cycles, but the printed structure must also maintain support. A metal thread inside a weak boss does not create a reusable fastening system.
Engineering Interpretation
The reuse life of a heat set insert is not defined only by the insert.
It is defined by the entire fastening structure.
A heat set insert provides durable internal threads, but repeated assembly still loads the printed boss. The boss must resist torque, preload, compression, vibration, and material relaxation over time.
If the structure is well designed, the insert joint may tolerate many service cycles. If the structure is weak, failure may appear after only a few cycles.
Common reuse-related failure modes include:
- Insert loosening from preload loss
- Insert spin from reduced torque resistance
- Pull-out from reduced axial retention
- Boss cracking from repeated stress
- Boss deformation from sustained preload
- Layer separation from poor load direction
This is why reusable 3D printed assemblies should be designed around the insert, boss, screw, material, and load path together.
How to Improve Reuse Life
To improve the reuse life of heat set inserts in 3D printed parts:
- Use a heat set insert instead of relying on printed plastic threads.
- Use the correct pilot hole size for the insert and material.
- Design enough boss wall thickness around the insert.
- Use enough boss height and surrounding support.
- Choose an insert length suitable for repeated assembly.
- Use enough screw engagement length.
- Avoid excessive screw tightening torque.
- Control installation temperature.
- Avoid overheating or collapsing the boss.
- Choose material based on repeated use, load, and temperature.
- Reduce vibration where possible.
- Avoid placing bosses near weak edges or thin walls.
- Design serviceable parts for repeated assembly from the beginning.
The goal is not only to make the screw thread durable. The goal is to keep the printed boss and insert interface stable after many assembly cycles.
A reusable insert joint is a supported fastening system, not just a metal insert placed into plastic.
Related InsertGuide Pages
- Heat Set Inserts for Repeated Assembly in 3D Printed Parts
- Why Does Repeated Assembly Weaken Heat Set Inserts?
- Heat Set Insert Failure Modes in Repeated Assembly Structures
- Recommended Fastening Structure for Repeated Assembly PETG Parts
- Why Do Heat Set Inserts Become Loose Over Time?
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- Heat Set Insert Torque Resistance in PETG vs PLA Parts
- How to Design Bosses for Heat Set Inserts
FAQ
Do heat set inserts wear out after many screw cycles?
Usually the metal insert does not wear out first. In many 3D printed parts, the surrounding plastic boss or insert interface weakens before the metal threads fail.
Is there a fixed number of times a heat set insert can be reused?
No. Reuse life depends on boss design, material, screw torque, screw engagement, insert fit, vibration, and load conditions. A well-supported insert may survive many cycles, while a weak boss may fail quickly.
Are heat set inserts better than printed threads for repeated assembly?
Yes. Heat set inserts are usually much better than printed plastic threads for repeated assembly. However, the boss and surrounding printed structure still need to be designed for repeated screw loading.
