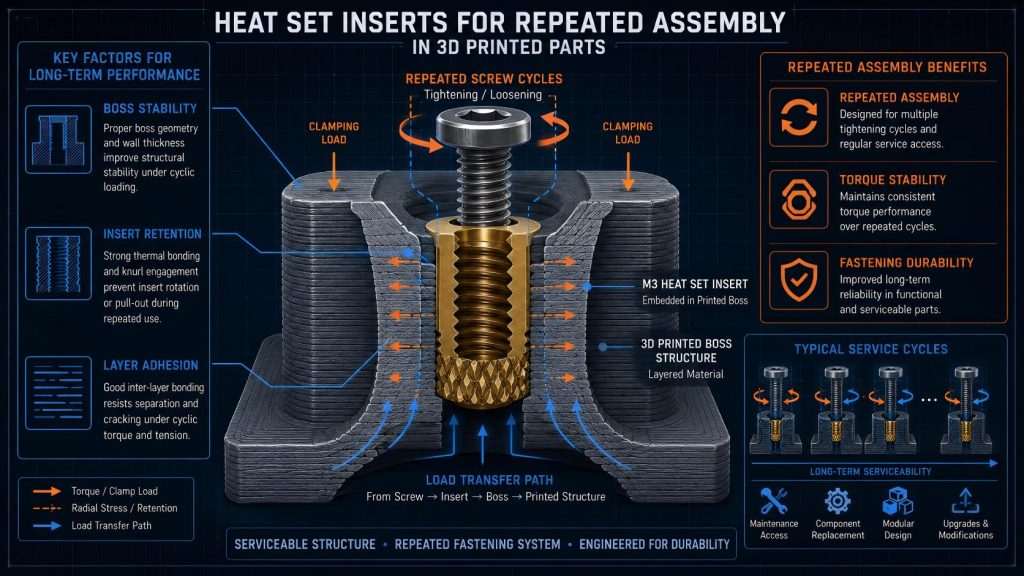

Heat set inserts are commonly used in 3D printed parts that require repeated assembly and disassembly. Unlike printed plastic threads, metal inserts provide more stable fastening performance over multiple maintenance cycles.
However, repeated assembly introduces additional mechanical stress into the surrounding printed structure.
Over time, fastening durability depends on more than thread strength alone.
Long-term stability is influenced by:
- boss geometry
- insert retention
- torque loading
- layer adhesion
- material behavior
- screw engagement
- installation quality
In functional engineering assemblies, repeated assembly performance becomes one of the most important indicators of fastening reliability.
Why Repeated Assembly Matters
Many 3D printed assemblies require regular access for maintenance, upgrades, or component replacement.
Common examples include:
- electronics enclosures
- battery compartments
- robotics systems
- modular fixtures
- removable service panels
- prototype assemblies
Repeated tightening cycles gradually increase stress around the insert and surrounding boss structure.
Weak fastening systems may eventually develop:
- spinning inserts
- boss cracking
- layer separation
- reduced torque stability
- permanent deformation
Engineering fastening structures must therefore be designed for long-term serviceability rather than single-use installation.
Factors Affecting Repeated Assembly Performance
Boss Design
Boss geometry strongly affects repeated assembly durability.
Thin bosses may initially appear stable but often weaken after multiple tightening cycles.
Stable boss structures typically provide:
- balanced wall thickness
- proper load distribution
- structural support near the insert base
- resistance to radial expansion
Related Guide:
M3 Heat Set Insert Boss Design for 3D Printed Parts
Insert Retention Strength
Insert retention behavior directly affects long-term fastening reliability.
Weak retention may cause inserts to loosen or rotate during repeated screw installation.
Pull-out resistance becomes especially important in assemblies exposed to vibration or maintenance access.
Related Guide:
M3 Heat Set Insert Pull-Out Strength for 3D Printed Parts
Torque Loading
Repeated tightening introduces cyclic torque stress into the surrounding printed material.
Excessive torque may gradually damage:
- layer bonding
- boss geometry
- insert alignment
- surrounding wall structures
Controlled torque behavior is often more important than maximum tightening force.
Related Guide:
Torque Resistance of Heat Set Inserts in 3D Printed Parts
Material Behavior
Different materials respond differently to repeated fastening cycles.
PLA may provide high stiffness but lower fatigue tolerance.
PETG often provides improved flexibility and impact resistance.
ABS and nylon may perform differently under thermal cycling and vibration.
Material creep behavior can strongly affect long-term insert stability.
Related Guide:
Recommended M3 Heat Set Inserts for PETG
Installation Quality
Improper insert installation may weaken repeated assembly performance from the beginning.
Overheating may damage surrounding material structure.
Insufficient thermal bonding may reduce retention strength.
Consistent installation behavior improves long-term fastening durability.
Related Guide:
Heat Set Insert Installation Temperature for 3D Printed Parts
Common Repeated Assembly Failure Cases
Spinning Inserts
Repeated tightening cycles may gradually weaken insert retention inside the boss structure.
Boss Cracking
Thin or unsupported bosses may crack after multiple service cycles.
Layer Separation
Cyclic loading may eventually weaken interlayer bonding around the insert base.
Torque Instability
Repeated assembly may reduce fastening consistency and increase screw loosening risk over time.
Repeated Assembly Requires a Complete Fastening System
Repeated assembly performance depends on more than insert selection alone.
Long-term fastening durability is influenced by the interaction between:
- insert geometry
- boss structure
- hole size
- layer adhesion
- installation quality
- material behavior
- torque loading conditions
Successful engineering assemblies must treat inserts and surrounding printed structures as part of a complete fastening system.
Related Engineering Guides
- M3 Heat Set Insert Boss Design for 3D Printed Parts
- M3 Heat Set Insert Pull-Out Strength for 3D Printed Parts
- M3 Heat Set Insert Hole Size for 3D Printed Parts
- Torque Resistance of Heat Set Inserts in 3D Printed Parts
- Heat Set Insert Installation Temperature for 3D Printed Parts
- Recommended M3 Heat Set Inserts for PETG
- Engineering References
Conclusion
Heat set inserts significantly improve repeated assembly performance in 3D printed parts when combined with stable fastening structures.
Long-term durability depends on proper boss geometry, controlled torque loading, reliable insert retention, and consistent installation behavior.
In functional engineering assemblies, repeated assembly should be treated as a structural design requirement rather than a secondary consideration.
