Why Do Heat Set Inserts Fail in PETG Parts?

Short Engineering Answer

Heat set inserts fail in PETG parts when the surrounding PETG structure cannot maintain stable mechanical locking, screw preload, or boss support under heat, torque, creep, vibration, or repeated assembly.

PETG is tougher and less brittle than PLA, but it can deform or creep under sustained load. This means a heat set insert may install cleanly at first, but the joint can lose stability over time if the boss is thin, the screw is over-tightened, the hole is poorly sized, or the part is exposed to long-term clamping force.

A PETG insert failure is rarely caused by PETG alone. It usually comes from the relationship between material behavior, hole size, boss geometry, installation temperature, screw torque, and assembly frequency.

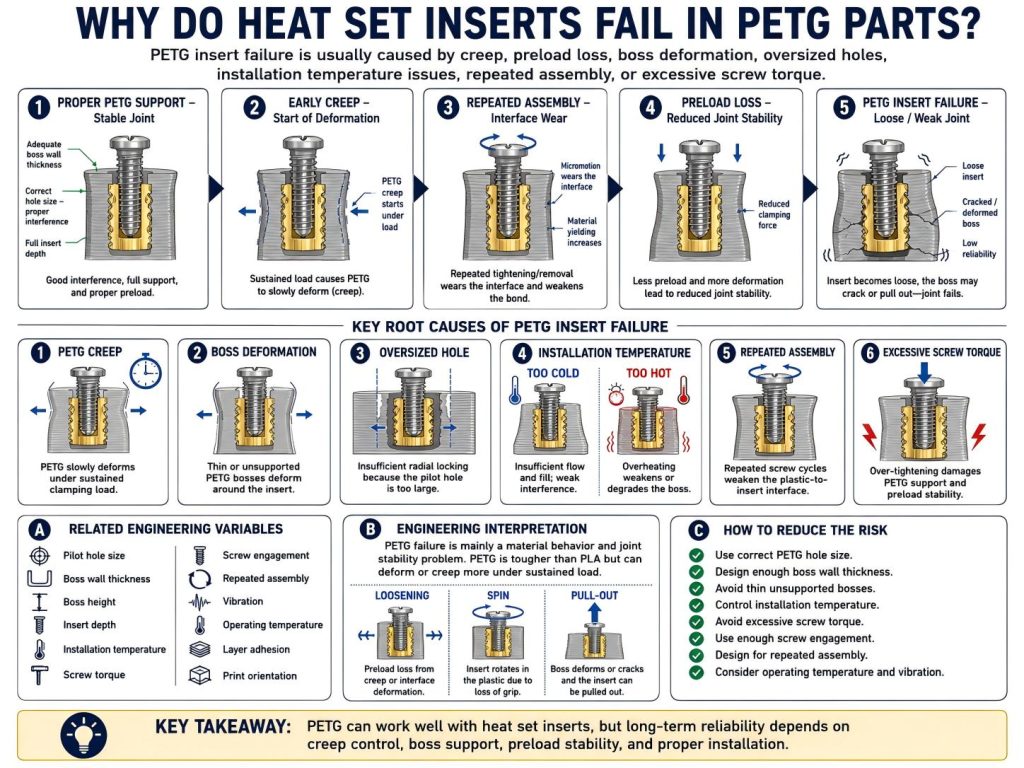

Engineering diagram showing why heat set inserts fail in PETG parts due to PETG creep, preload loss, boss deformation, oversized holes, installation temperature issues, and repeated assembly.

Root Causes

PETG Creep Under Sustained Load

PETG can slowly deform when it is held under continuous screw preload.

This is one of the most important reasons heat set inserts may become loose in PETG parts over time. The insert may remain seated in the boss, but the surrounding plastic can relax under clamping force. As the plastic creeps, screw preload drops and the joint may begin to feel loose.

Creep does not mean PETG is unsuitable for heat set inserts. It means PETG fastening structures must be designed with enough boss support, controlled screw torque, and realistic long-term load expectations.

Boss Deformation Around the Insert

PETG is more flexible than PLA, which can help reduce cracking risk. But that flexibility can also allow boss deformation if the boss wall is too thin or unsupported.

When the screw is tightened, the boss must resist radial pressure and clamping load. If the boss wall slowly deforms, the insert can lose support. This can reduce torque resistance, pull-out strength, and preload stability.

A correct hole size cannot fully compensate for a weak PETG boss.

Oversized Pilot Hole

If the pilot hole is too large, the insert may not displace enough PETG during installation.

The knurled outer surface of the insert depends on softened plastic flowing around it. If the hole is oversized, the plastic-to-insert interface may be weak from the start. Over time, screw torque, vibration, or repeated assembly can make the insert loosen, spin, or pull out.

PETG can hide this problem because the part may still look clean after installation. The real weakness appears when the joint is loaded.

Poor Installation Temperature Control

PETG needs controlled heat during insert installation.

If the insert is installed too cold, PETG may not flow properly around the knurling. This reduces mechanical engagement.

If the insert is installed too hot, the surrounding boss may over-soften, deform, or lose structure. This can reduce long-term holding strength even if the insert appears seated.

Good PETG installation should create controlled material flow without collapsing the boss or leaving voids around the insert.

Excessive Screw Torque

PETG insert joints can fail when the screw is tightened beyond what the surrounding plastic structure can support.

Excessive torque can reduce preload reliability, deform the boss, damage the plastic-to-insert interface, or start insert rotation. In PETG, the joint may not crack immediately. Instead, it may slowly lose stability as the plastic relaxes under load.

This is why torque control matters in PETG parts, especially for serviceable assemblies.

Repeated Assembly Cycles

Repeated screw installation and removal can weaken the interface around a heat set insert.

In PETG parts, each assembly cycle applies torque, local compression, and small interface movement. Over time, this can reduce the mechanical lock between insert and plastic.

This is common in enclosures, robotics parts, fixtures, printer parts, RC components, and serviceable assemblies where screws are removed and tightened many times.

Heat Exposure During Use

PETG has better heat resistance than PLA, but it can still soften or deform under elevated temperature and load.

If a PETG part is used near motors, electronics, batteries, enclosed printer chambers, or warm operating environments, the boss around the insert may become more vulnerable to creep and deformation.

Heat exposure does not automatically cause failure, but it reduces the safety margin of the fastening structure.

Related Engineering Variables

PETG heat set insert reliability depends on several connected variables:

PETG creep behavior
Pilot hole size
Boss wall thickness
Boss height
Insert outer diameter
Insert depth
Installation temperature
Screw tightening torque
Screw engagement length
Repeated assembly cycles
Vibration
Operating temperature
Layer adhesion
Print orientation

These variables should be evaluated together. PETG may hold an insert well in a thick, well-supported boss with controlled torque, but fail in a thin boss with high preload and repeated assembly.

The material is only one part of the fastening system.

Engineering Interpretation

PETG insert failure is usually a material behavior and joint stability problem.

PETG is not simply “good” or “bad” for heat set inserts. Its behavior depends on how the printed structure is designed and loaded.

Compared with PLA, PETG is usually less brittle and more ductile. This can reduce sudden cracking, but it can also allow slow deformation under load.

Compared with ABS, PETG may have lower heat resistance and may be more sensitive to long-term clamping deformation in some applications.

This means PETG insert design should focus on preload stability, boss support, torque control, and repeated assembly behavior.

If a PETG insert fails, the cause is often not the insert itself. The failure usually comes from the surrounding plastic losing support, preload, or mechanical engagement.

How to Reduce the Risk

To reduce heat set insert failure in PETG parts:

Use the correct pilot hole size for PETG, not only the insert datasheet value.
Design enough boss wall thickness around the insert.
Avoid thin or unsupported bosses.
Control installation temperature carefully.
Avoid overheating the PETG boss.
Avoid excessive screw torque.
Use enough screw engagement length.
Design for repeated assembly if the part will be serviced often.
Avoid high sustained preload in weak PETG bosses.
Consider operating temperature and vibration.
Improve boss geometry before simply changing insert type.

PETG can work well with heat set inserts, but the printed structure must be designed for the load conditions.

In many PETG failures, the fix is not a different insert. The fix is better hole sizing, boss geometry, screw engagement, and preload control.

Related InsertGuide Pages

FAQ

Is PETG bad for heat set inserts?

No. PETG can work well with heat set inserts, especially when the boss is thick, the hole size is controlled, and screw torque is reasonable. Problems usually happen when PETG creep, weak boss support, repeated assembly, or excessive preload is ignored.

Why do heat set inserts loosen in PETG?

Heat set inserts loosen in PETG when the surrounding plastic loses preload or mechanical engagement. This can happen because PETG creeps under sustained clamping load, the boss deforms, the hole is oversized, or the screw is repeatedly tightened and removed.

Is PETG better than PLA for heat set inserts?

PETG is usually tougher and less brittle than PLA, but it may deform or creep more under sustained load. PLA may crack more easily, while PETG may lose preload over time. The better choice depends on boss design, load, temperature, and assembly frequency.
