Short Engineering Answer

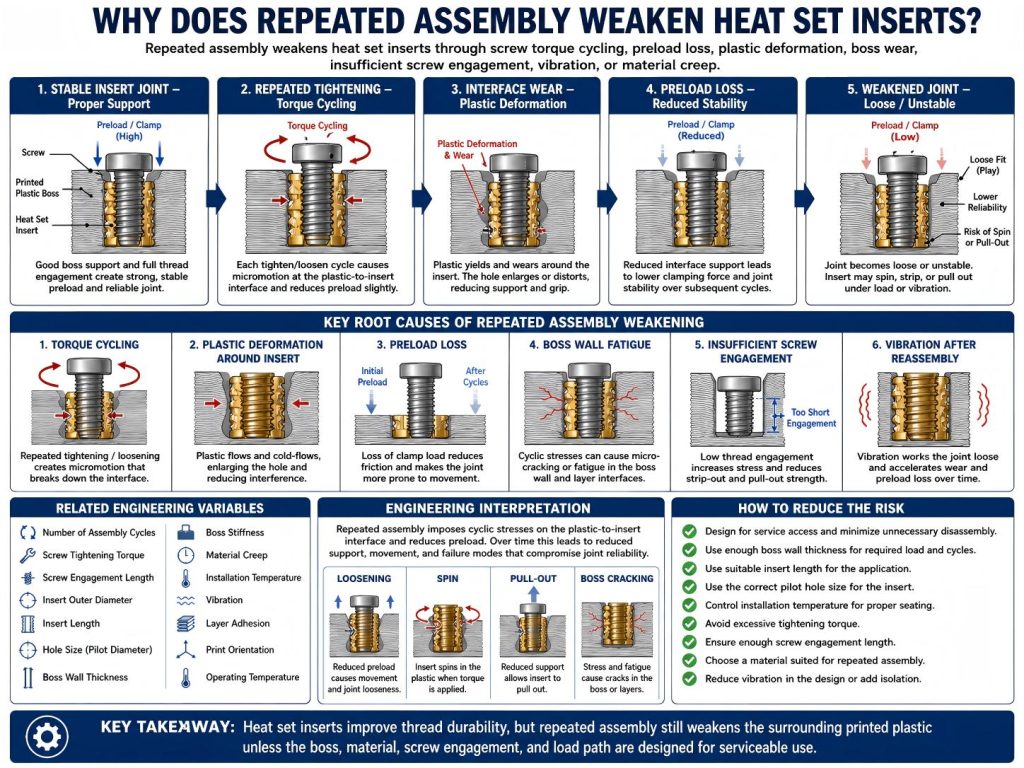

Repeated assembly weakens heat set inserts when repeated screw tightening and removal gradually reduces the stability of the plastic-to-insert interface.
The metal insert may not be damaged, but the printed plastic around it can experience torque cycling, local compression, small interface movement, boss deformation, and preload loss. Over time, this can make the insert feel loose, reduce torque resistance, or increase the risk of pull-out.
This is common in 3D printed parts that are opened, serviced, adjusted, or repaired many times. A heat set insert improves thread durability, but it does not make the surrounding printed plastic immune to repeated assembly stress.
Repeated assembly failure is usually a long-term fastening reliability problem, not simply an insert strength problem.
Root Causes
Torque Cycling at the Insert Interface
Every time a screw is tightened or removed, torque is transferred through the insert into the surrounding plastic.
If the insert-to-plastic interface is strong, this torque is resisted by the knurled surface and the surrounding boss. But over many cycles, small amounts of movement, compression, or plastic deformation can accumulate.
The insert may still look seated, but the interface can gradually lose rotational stability.
This is why parts designed for repeated service need more than basic insert installation. They need boss geometry and material support that can resist repeated torque cycles.
Plastic Deformation Around the Insert
Repeated assembly can deform the printed plastic around the insert.
Each screw cycle creates local pressure and stress. In materials such as PETG, the plastic may slowly deform or relax under repeated load. In stiffer materials such as PLA, stress may lead to cracking instead of slow deformation.
Both behaviors can weaken the fastening structure.
The insert itself is usually stronger than the surrounding printed plastic. The limiting factor is often the boss and the plastic interface around the insert.
Preload Loss Over Time
A screw joint depends on preload.
When a screw is tightened, it clamps parts together. If the printed plastic creeps, compresses, deforms, or relaxes, that preload can drop.
Repeated assembly can accelerate preload loss because each cycle re-applies and releases clamping force. Over time, the joint may no longer feel as tight as it did when new.
This can happen even when the screw and insert threads are still intact.
Boss Wall Fatigue and Deformation
The boss around the insert is the load-bearing structure.
Repeated tightening can apply radial stress, axial load, and local compression to the boss. If the boss wall is thin, unsupported, too close to an edge, or poorly connected to the surrounding part, it may deform or crack over time.
A weak boss may allow insert loosening, spin, pull-out, or cracking after repeated screw cycles.
A correct hole size cannot compensate for a boss that is not designed for serviceable use.
Insufficient Screw Engagement
Screw engagement length affects how repeated assembly loads are distributed.
If the screw engages too few threads, the load is concentrated over a shorter length of the insert. This can increase local stress during tightening and removal.
In repeated assembly, insufficient engagement can make the joint more sensitive to torque variation, preload loss, and interface wear.
Enough screw engagement helps distribute load more consistently through the insert and boss.
Material Creep and Relaxation
Material behavior matters strongly in repeated assembly.
PETG may deform or creep under sustained preload. PLA may resist deformation but crack more easily under stress concentration. ABS may tolerate heat and stress better in some applications, but still depends on geometry and installation quality.
Repeated assembly does not affect every material in the same way. The failure mode depends on how the material responds to torque, preload, heat, and cyclic stress.
Vibration After Reassembly
Many serviceable parts are also exposed to vibration.
Robotics assemblies, RC cars, drones, printer parts, fixtures, and electronics enclosures may be opened and closed repeatedly, then exposed to motion or vibration during use.
If the insert interface has already weakened through repeated assembly, vibration can make loosening happen faster.
Vibration usually exposes an already weak joint rather than acting as the only cause.
Related Engineering Variables
Repeated assembly reliability depends on several connected variables:
- Number of assembly cycles
- Screw tightening torque
- Screw engagement length
- Insert outer diameter
- Insert length
- Hole size
- Boss wall thickness
- Boss stiffness
- Material creep
- Installation temperature
- Plastic flow around knurling
- Vibration
- Layer adhesion
- Print orientation
- Operating temperature
These variables should be evaluated together. A heat set insert can survive many assembly cycles in a thick, well-supported boss, but fail quickly in a thin boss with poor engagement, high torque, or weak material support.
Repeated assembly is not only about thread wear. It is about whether the whole printed fastening structure can maintain stability after repeated screw loading.
Engineering Interpretation
Repeated assembly weakens heat set inserts by stressing the interface between the metal insert and the printed plastic.
The insert provides durable metal threads, but the surrounding plastic still carries the structural load. When a screw is repeatedly tightened and removed, the printed boss must resist torque, preload, compression, and sometimes vibration.
This can lead to several related failure modes:
- Insert loosening from preload loss
- Insert spin from reduced torque resistance
- Pull-out from reduced axial retention
- Boss cracking from repeated radial stress
- Layer separation from poor load direction or weak layer adhesion
These failure modes often overlap.
For example, repeated assembly may first reduce preload. Then the joint becomes loose. Later, the insert may spin or pull out because the surrounding plastic no longer supports it properly.
This is why repeated assembly should be considered during design, not only after failure appears.
How to Reduce the Risk
To reduce the risk of repeated assembly weakening heat set inserts:
- Design the part for service access from the beginning.
- Use enough boss wall thickness around the insert.
- Use a suitable insert length for the expected load.
- Use the correct pilot hole size.
- Control installation temperature.
- Avoid excessive screw tightening torque.
- Use enough screw engagement length.
- Choose material based on repeated use, not only print convenience.
- Avoid thin, unsupported, or edge-adjacent bosses.
- Reduce vibration where possible.
- Avoid relying on plastic deformation to hold high preload.
- Use larger or longer inserts only when the boss can support them.
The best repeated assembly structure is not just a metal insert in plastic. It is a supported fastening system where the insert, boss, screw, material, and load path work together.
If a part will be opened often, repeated assembly should be treated as a design requirement, not an afterthought.
Related Root Cause Guides
Repeated assembly failure is usually connected to screw preload loss, thread wear, PETG creep, short screw engagement, and repeated torque cycles. For the main design variables, see Screw Engagement Length for Heat Set Inserts in 3D Printed Parts, why screw preload drops in 3D printed insert joints, and why threaded inserts loosen after repeated screw removal.
Related InsertGuide Pages
- Heat Set Inserts for Repeated Assembly in 3D Printed Parts
- Heat Set Insert Failure Modes in Repeated Assembly Structures
- Recommended Fastening Structure for Repeated Assembly PETG Parts
- Why Do Heat Set Inserts Become Loose Over Time?
- Why Does PETG Lose Screw Torque Over Time?
- Heat Set Insert Torque Resistance in PETG vs PLA Parts
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- How to Design Bosses for Heat Set Inserts
- Why Heat Set Inserts Fail in 3D Printed Parts
FAQ
Do heat set inserts wear out after repeated assembly?
The metal insert usually does not wear out first. In many 3D printed parts, the surrounding plastic interface weakens before the insert threads fail. Repeated screw cycles can reduce preload, torque resistance, and plastic support around the insert.
How does repeated screw removal weaken a heat set insert joint?
Repeated screw removal applies torque and stress to the insert-to-plastic interface. Over time, this can cause plastic deformation, preload loss, boss wear, or reduced mechanical locking around the insert.
Are heat set inserts good for parts that need repeated assembly?
Yes, heat set inserts are usually better than printed plastic threads for repeated assembly. However, the boss, hole size, material, screw engagement, and torque control must be designed for repeated use. The insert alone does not guarantee long-term reliability.
