Heat Set Inserts in Electronics Mounting Systems

Heat set inserts in electronics mounting systems are used to create durable threaded points for circuit boards, sensor modules, controller housings, removable covers, display panels, cable brackets, and serviceable electronic assemblies. In 3D printed electronics enclosures and mounting structures, inserts help plastic parts survive repeated screw assembly without wearing out printed holes.

Electronics mounting systems are different from heavy mechanical brackets. The loads are often smaller, but alignment, serviceability, insulation, vibration resistance, and dimensional stability matter more.

A screw that holds a PCB stack, sensor board, cover plate, or cable clamp may not carry high force, but it must hold position accurately. If the insert is tilted, overheated, placed in a weak boss, or installed too close to a board edge, the assembly may become difficult to service or unreliable over time.

The key point is:

In electronics mounting systems, heat set inserts should protect thread durability without distorting alignment-critical printed structures.

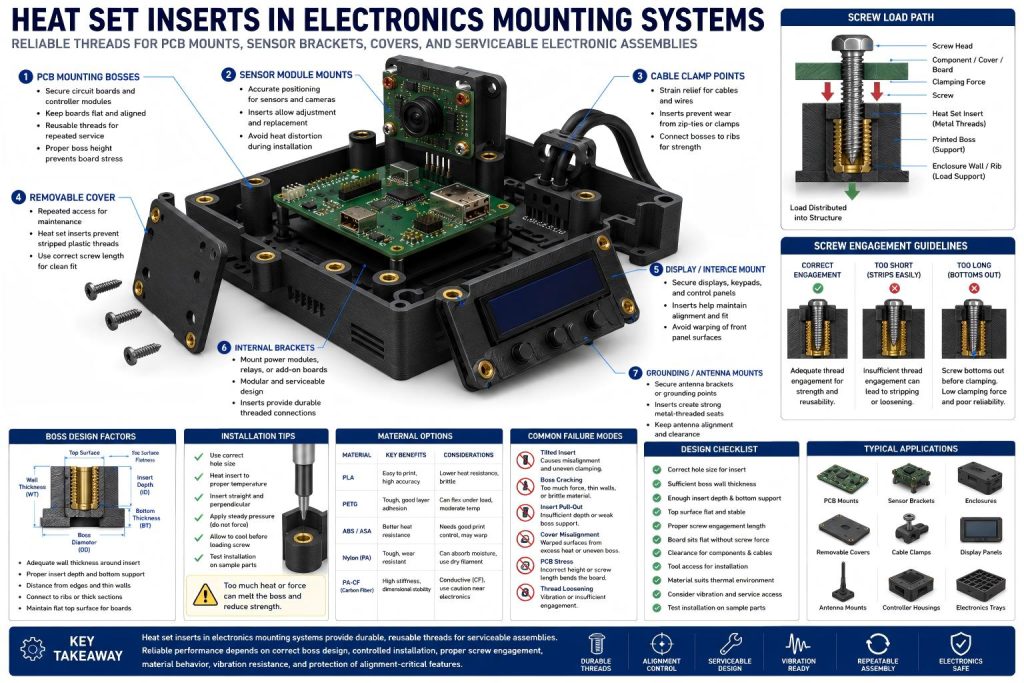

Heat set inserts in electronics mounting systems create durable threaded points for PCB bosses, sensor modules, controller housings, removable covers, cable brackets, and serviceable 3D printed electronic assemblies. Reliable design depends on boss geometry, insert alignment, screw engagement, material behavior, and protection of alignment-critical features.

Why Electronics Mounting Systems Use Heat Set Inserts

Electronics assemblies often need small screws and repeated service access. A housing may be opened for maintenance. A sensor module may need adjustment. A circuit board stack may be removed during debugging. A cable bracket may be repositioned. A display panel may need replacement.

Printed plastic threads can work for early prototypes, but they may wear quickly after repeated screw removal. Heat set inserts solve this by providing reusable metal threads inside the printed structure.

Common electronics mounting applications include:

PCB mounting bosses
controller housings
sensor brackets
camera module mounts
display panel mounts
removable covers
cable clamp points
antenna brackets
battery management enclosures
embedded device housings
robotics electronics trays
drone flight controller stacks
IoT device enclosures

In these applications, insert strength is only one part of the problem. The insert must also preserve the geometry around it.

A strong insert is not useful if it warps the board mount, tilts the sensor, or deforms the cover surface.

Common Insert Locations in Electronics Assemblies

Heat set inserts are usually placed where screws need to be removed, tightened, or reused without damaging the printed part.

PCB Mounting Bosses

PCB mounting bosses are one of the most common insert locations in electronics systems. They support circuit boards, controller boards, breakout boards, power modules, and stacked electronics.

The insert should be installed straight and seated at a consistent depth. If the insert sits too high, the PCB may not lie flat. If it is tilted, the screw may pull the board out of alignment. For PCB bosses and compact electronics mounts, correct hole size helps the insert seat cleanly without tilting, cracking the boss, or raising material under the board.

For PCB mounting, the boss should have enough wall thickness, but it should not be so large that it interferes with components, connectors, heat sinks, or cable routing.

Sensor Module Mounts

Sensors often require stable positioning. A camera, lidar module, proximity sensor, limit switch, encoder, or IMU may depend on accurate orientation.

Heat set inserts allow sensor brackets to be adjusted or replaced, but the insert area must not distort during installation.

If the insert boss softens too much, the sensor angle may shift. In some applications, a tiny angular change becomes a large measurement error.

Removable Covers and Access Panels

Electronics enclosures often need removable covers for maintenance, battery replacement, debugging, or firmware access.

Heat set inserts are useful because cover screws may be removed many times. Plastic threads can strip after repeated use, especially with small screws.

For cover panels, insert locations should avoid thin edges and unsupported walls. The insert must be strong enough to hold the cover, but installation should not create bumps or sink marks that affect fit.

Cable Clamp and Strain Relief Points

Cable clamps, zip-tie mounts, strain relief brackets, and connector supports can benefit from inserts. These points may experience repeated tightening and light pulling forces. For cable clamps, removable covers, and sensor brackets, pull-out strength should still be considered because light pulling forces can repeat many times during service.

The insert boss should be connected to the enclosure body or rib structure so cable forces do not crack a small isolated feature.

Display and Interface Mounts

Displays, keypads, control panels, and interface plates often need accurate alignment with openings in the enclosure.

Insert installation should not warp the front panel. If the insert pulls the panel unevenly, buttons may stick, screens may sit crooked, or cover plates may not close properly.

Alignment Matters More Than Maximum Strength

In many electronics mounting systems, the insert is not carrying a large structural load. Instead, the insert supports alignment, repeatability, and serviceability.

This changes the design priority.

For heavy mechanical parts, the main concern may be pull-out strength or torque resistance. For electronics, the main concerns are often:

board flatness
connector alignment
sensor orientation
cover fit
cable routing clearance
screw access
repeatable service
avoiding local deformation
preventing stress on PCB holes

A PCB should not be forced into position by screws. If the board only fits when screws bend it into place, the mounting system is already flawed.

Heat set inserts should support the electronics assembly, not fight it.

Boss Design for Electronics Mounting Inserts

A PCB boss or electronics mounting boss should be strong enough to hold the insert, but it should also be dimensionally controlled.

Important boss design factors include:

outer boss diameter
wall thickness around the insert
insert depth
bottom material thickness
top surface flatness
distance from enclosure walls
clearance around electronic components
screw engagement length（For compact enclosures and PCB mounts, boss design should balance insert support with clearance for components, connectors, cables, and installation tools.）
access for the installation tool
spacing from connectors and cables
distance from heat-sensitive features

Small screws can make designers underestimate the boss. Even M2, M2.5, or M3 screws can crack a thin boss if the hole is undersized or the insert is installed with too much pressure.

At the same time, oversized bosses can create layout problems in compact electronics enclosures. The boss should be sized for the insert, screw, and load instead of being copied blindly from a larger mechanical design.

For PCB mounting, the boss top should provide a stable seat. If the board needs standoffs, spacers, or isolation washers, these should be considered before the insert location is finalized.

Insert Installation and Thermal Control

Electronics mounting systems often have thin walls, small bosses, and tight clearances. This makes installation control important.

If the insert is too cold, it may require excessive force and crack the boss. If it is too hot, it may soften too much material and deform the mounting surface. In electronics mounting systems, installation temperature should be controlled carefully so the insert seats without deforming board supports, cover surfaces, or nearby thin features.

Good insert installation should produce:

straight insertion
consistent insert depth
no tilted insert
no boss cracking
no raised material under the board
no melted plastic interfering with covers
no warped panel surface
no damage to nearby thin features

The installation tool should approach the insert perpendicular to the mounting surface. For small electronics bosses, hand alignment matters. A tilted insert can become a crooked screw, and a crooked screw can become a tiny mechanical gremlin in the enclosure.

For critical boards or sensor modules, test insert installation on a sample before installing inserts into final parts.

Screw Engagement in Electronics Mounting Systems

Electronics assemblies often use small screws. Small screws are easy to overtighten, strip, or misalign if the insert and boss are not designed properly. For PCB stacks, covers, and small service screws, screw engagement length should be long enough to hold the assembly without bottoming out or bending the board.

Screw engagement should be enough to hold the assembly securely, but the screw should not bottom out below the insert.

Problems caused by poor screw engagement include:

loose covers
cracked bosses
board bending
uneven clamping
stripped screw heads
insert pull-out
screw bottoming against plastic
inconsistent service behavior

For PCB stacks and covers, the screw should clamp the intended parts without forcing plastic deformation. If spacers are used, the screw length should match the full stack.

A good electronics mounting system makes the correct screw length obvious. A poor one quietly invites assembly errors.

Material Choice for Electronics Mounting Systems

Material choice affects dimensional stability, heat resistance, stiffness, and insert installation behavior.

PLA

PLA can work for prototype electronics enclosures, low-temperature housings, simple PCB mounts, and desktop devices. It prints accurately and holds shape well in normal indoor conditions.

However, PLA can soften near heat sources and may crack in thin bosses. It is not ideal for warm electronics, outdoor use, vibration, or parts that require frequent service.

PETG

PETG is tougher than PLA and often works well for electronics enclosures and cable-related parts. It can absorb impact better, but it may flex more.

PETG bosses should be designed with enough wall thickness to avoid deformation around inserts and screws.

ABS and ASA

ABS and ASA offer better heat resistance and can be useful for electronics housings, control boxes, outdoor enclosures, and serviceable covers.

They require good print quality to maintain dimensional accuracy. Warping can affect cover fit and board alignment.

Nylon and Carbon Fiber Nylon

Nylon and carbon fiber nylon can be useful for more demanding electronics mounting systems, especially in robotics, drones, industrial sensors, and functional equipment.

Carbon fiber nylon offers stiffness and dimensional stability, but insert installation must be controlled carefully. Conductivity and electrical isolation should also be considered when using filled materials near sensitive electronics, depending on the specific material and application.

Vibration and Service Access

Electronics are often mounted in systems that vibrate, move, or require regular service. Examples include robots, drones, vehicles, machine controllers, test equipment, and portable devices.

Heat set inserts help by allowing repeated access without damaging the enclosure, but vibration can still loosen screws if the joint is poorly designed. In vibration-prone electronics trays and controller housings, torque resistance helps reduce the risk of insert rotation during repeated service or screw tightening.

Insert locations should consider:

screw engagement
clamp load
board support
cable strain relief
enclosure stiffness
local boss support
vibration direction
service frequency
screw locking strategy if needed

In vibration-prone systems, the insert boss should not be isolated in a thin flexible wall. It should connect to ribs, thicker sections, or the enclosure frame.

A serviceable electronics assembly should be easy to open without slowly destroying itself.

Common Failure Modes in Electronics Mounting Inserts

Heat set inserts in electronics mounting systems tend to fail in predictable ways.

Tilted Inserts

A tilted insert can cause screws to enter at an angle. This may bend the PCB, misalign a cover, or damage a sensor mount.

Common causes include poor tool alignment, uneven heating, soft boss geometry, and rushed installation.

Boss Cracking

Boss cracking can happen during insert installation or screw tightening.

Typical causes include:

undersized holes
brittle material
thin boss walls
excessive insertion force
insert too close to an edge
overtightening small screws

Thin electronics bosses are especially vulnerable if the hole is not sized correctly.

Insert Pull-Out

Pull-out can happen when a cover, bracket, cable clamp, or sensor mount is pulled away from the enclosure.

Causes may include shallow insert depth, weak boss support, insufficient bottom material, or repeated service loads.

Cover Misalignment

Even when the insert does not fail, poor installation can distort a cover surface or panel edge. This can cause gaps, poor sealing, or screw holes that no longer align.

PCB Stress

If insert height, boss height, or screw length is wrong, the PCB may be bent during assembly. This can stress solder joints, connectors, or board holes.

Thread Loosening

Repeated service or vibration may loosen screws if engagement is too short or the assembly lacks proper clamping support.

Design Checklist for Electronics Mounting Systems

Before using heat set inserts in an electronics mounting system, check the following:

Is the insert used for a PCB, cover, sensor, cable clamp, or interface panel?
Does the boss have enough wall thickness?
Is the insert depth suitable for the screw?
Is the boss top surface flat enough for the board or spacer?
Is the insert far enough from edges and thin walls?
Will installation heat distort nearby features?
Is there clearance for the insert installation tool?
Are connectors, cables, and components clear of the boss?
Will the screw bottom out before clamping the part?
Does the board sit flat without screw force?
Will the assembly be opened repeatedly?
Is vibration expected?
Does the material suit the thermal environment?
Are sensitive electronics protected from mechanical stress?
Has installation been tested on a sample boss?

Electronics assemblies rarely fail loudly at first. They prefer small alignment problems that multiply later. The best insert design keeps those small problems from entering the box.

Engineering Takeaway

Heat set inserts can make 3D printed electronics mounting systems more durable, serviceable, and reliable. They are especially useful for PCB bosses, controller housings, sensor brackets, removable covers, cable clamps, display panels, and embedded device assemblies.

But electronics mounting is not only about strength.

Reliable performance depends on:

correct hole size
controlled insert installation
stable boss geometry
flat PCB support
sufficient screw engagement
proper screw length
material thermal behavior
vibration resistance
clean service access
avoiding stress on boards and connectors

A good electronics mounting system does not simply hold screws.

It keeps boards flat, sensors aligned, covers serviceable, cables supported, and inserts stable through repeated assembly.

Heat set inserts provide the threads, but the printed structure must protect the geometry around them.

FAQ

Are heat set inserts useful in electronics mounting systems?

Yes. Heat set inserts are useful in electronics mounting systems because they provide durable metal threads for PCB bosses, removable covers, sensor brackets, cable clamps, display mounts, and serviceable enclosures.

Where should heat set inserts be used in electronics enclosures?

They are most useful in PCB mounting bosses, cover screw points, sensor brackets, cable strain relief mounts, display panels, interface plates, and modular electronics trays that need repeated assembly or service.

What causes inserts to fail in electronics mounting systems?

Common causes include tilted installation, thin boss walls, undersized holes, overheated bosses, short screw engagement, poor screw length, boss cracking, and repeated service loads.

Can heat set inserts damage PCB alignment?

Yes. If inserts are tilted, raised, overheated, or installed in distorted bosses, they can cause PCB misalignment or board stress. PCB bosses should remain flat, accurate, and consistent after insert installation.

What material is best for 3D printed electronics mounts with inserts?

PLA can work for prototypes and low-temperature indoor devices. PETG works for tougher enclosures. ABS and ASA offer better heat resistance. Nylon or carbon fiber nylon can work for demanding robotics, drone, and industrial electronics, but boss design and installation control remain important.
