M4 heat set insert installation requires controlled heat, pilot hole fit, vertical alignment, seating depth, and boss support so the insert can lock into the printed plastic without cracking, tilting, spinning, or weakening the surrounding boss.
M4 inserts are widely used in functional 3D printed parts because they provide more fastening strength than M3 while still requiring less boss volume and installation heat than M5. This makes M4 a common choice for brackets, covers, fixtures, tool mounts, equipment housings, and medium-load assemblies.

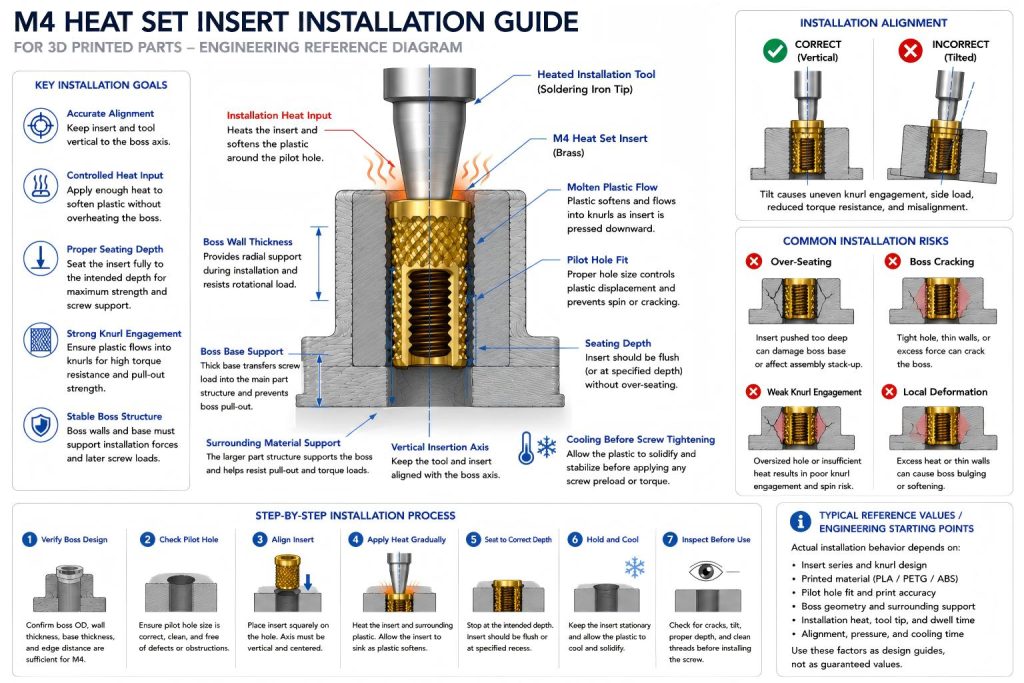

This guide explains the key installation variables for M4 heat set inserts in 3D printed parts, including pilot hole preparation, installation heat, insertion pressure, seating depth, screw axis alignment, material behavior, and common installation failure modes.
Engineering Overview
Installing an M4 heat set insert is a controlled plastic-flow process. The insert must heat the surrounding material enough for the knurls to displace and engage the plastic, but not so much that the boss softens, collapses, or loses dimensional accuracy.
M4 is a practical middle size. It is more forgiving than M2.5 or M3 because the insert has more surface area and the boss can usually be larger. It is also easier to manage than M5 because the installation heat and screw torque are lower. However, M4 still creates enough radial expansion, insertion force, and later tightening load that installation quality directly affects torque resistance, pull-out strength, and repeated assembly performance.
For M4 inserts, the most common installation problems are tilted inserts, cracked bosses, shallow seating, excessive heat, weak knurl engagement, and local boss deformation.
Typical Reference Factors for M4 Insert Installation
The table below provides typical reference values and engineering starting points. These are not universal process settings. Actual installation behavior depends on insert series, insert outside diameter, knurl geometry, printed material, print orientation, pilot hole tolerance, soldering iron tip geometry, and boss design.
| Installation Variable | Engineering Purpose | Risk if Poorly Controlled | Design Note |
|---|---|---|---|
| Insert Size | M4 provides medium-to-high fastening capacity for functional printed parts | Can overload compact bosses if treated like a small insert | M4 should be installed with more care than M3, especially in thin walls or service parts. |
| Pilot Hole Fit | Guides the insert and controls plastic displacement into the knurls | Oversized holes reduce retention; tight holes increase cracking and bulging risk | Hole size should follow insert manufacturer guidance and be adjusted for material behavior. |
| Installation Heat | Softens the plastic around the hole for controlled insert seating | Too much heat causes boss softening; too little heat causes poor knurl engagement | M4 usually needs more heat energy than M3 but less heat control risk than M5. |
| Insertion Pressure | Moves the insert vertically into softened plastic | Excess force can crack the boss or push the insert off-axis | The insert should sink gradually under heat instead of being forced into cold plastic. |
| Seating Depth | Ensures full insert engagement and stable screw support | Shallow seating reduces strength; over-seating damages stack-up or boss base | Seat the insert flush or to the intended design depth without bottoming out. |
| Screw Axis Alignment | Keeps the insert aligned with the screw path and mating part | Misalignment causes insert tilt, side loading, and uneven stress | M4 is less sensitive than M2.5, but alignment still matters for service joints. |
| Boss Wall Thickness | Supports radial expansion during insert installation | Thin boss walls may crack, bulge, or deform | M4 bosses should provide enough surrounding plastic to resist installation stress. |
| Boss Base Support | Transfers later screw preload and service loads into the printed part | A weak base can deform even if the insert seats correctly | Installation should not crush, overheat, or weaken the base below the insert. |
| Cooling Time | Allows plastic to solidify around the insert before loading | Early screw tightening can shift the insert or weaken engagement | Let the insert cool before applying screw preload. |
Recommended Installation Rules
- Check the boss before installing the insert. Confirm that the M4 boss has enough outside diameter, wall thickness, base thickness, and edge distance before applying heat.
- Use the correct pilot hole for the insert and material. A loose pilot hole may make installation easy but reduce torque resistance and pull-out strength. A tight hole may crack PLA or distort the boss.
- Use a tool tip that contacts the insert evenly. A flat or insert-compatible heated tip helps keep the insert vertical and reduces the chance of slipping into the internal thread.
- Apply heat gradually. The insert should soften the plastic and sink under controlled pressure. Do not force the insert before the plastic begins to flow.
- Keep the insert aligned with the boss axis. Insert tilt reduces screw alignment, weakens knurl engagement, and increases side load during assembly.
- Stop at the intended seating depth. Over-seating can damage the boss base, reduce screw stack-up control, or leave the insert below the surface unexpectedly.
- Allow cooling before screw assembly. Tightening a screw while the plastic is still soft can shift the insert or weaken the mechanical lock.
- Do not assume M4 can compensate for poor geometry. M4 is stronger than smaller sizes only when the printed boss can support it.
Material Adjustments for PLA, PETG, and ABS
PLA
PLA can give clean insert seating and good initial stiffness when the pilot hole and heat input are controlled. However, PLA is brittle and may crack if the M4 insert is forced into a tight hole or if the boss wall is too thin.
For M4 insert installation in PLA, avoid excessive insertion force. Let the insert heat the surrounding plastic gradually. If the boss shows stress whitening, vertical cracks, or edge splitting, the hole fit or boss geometry is probably too aggressive.
PETG
PETG is tougher than PLA and usually tolerates heat-set installation better, but it can soften, smear, or deform if the heat dwell is too long. PETG may also relax under screw preload after the insert is installed.
For M4 inserts in PETG, the installation should create clear knurl engagement without overheating the boss. A PETG boss may look successful immediately after installation but still need enough wall support to maintain torque resistance over time.
ABS
ABS can be suitable for functional M4 insert applications because it handles heat better than PLA in many conditions. However, too much heat can still soften the boss, reduce shape accuracy, and cause the insert to sink or tilt.
For ABS, the key is a stable installation process: proper pilot hole fit, controlled heat, vertical insertion, and cooling before loading. Print quality and layer adhesion remain important because the insert load must transfer into the surrounding printed structure.
Step-by-Step M4 Installation Process
1. Verify Boss Geometry
Before installation, check that the boss is large enough for an M4 insert. The boss should have enough wall thickness around the insert, enough base support below it, and enough edge distance from nearby walls, corners, cutouts, or slots.
2. Check the Pilot Hole
The pilot hole should allow the insert to start straight without dropping in loosely. If the insert falls into the hole before heating, the hole may be too large. If the insert cannot begin squarely, the hole may be too tight, rough, or poorly printed.
3. Align the Insert
Place the insert over the pilot hole with the insert axis aligned to the boss axis. The insert should be centered before heat and pressure are applied. Alignment errors at this stage often become permanent after the plastic cools.
4. Apply Heat with Controlled Pressure
Use the heated tool to warm the insert and soften the plastic around the pilot hole. Apply light, steady pressure. The insert should move downward as the plastic begins to flow into the knurls.
5. Seat to the Intended Depth
Stop when the insert is flush with the surface or reaches the specified seating depth. Do not continue pressing after the insert reaches its final position. Over-seating can damage the boss base or create assembly interference.
6. Hold Alignment During Cooling
Keep the insert steady while the surrounding plastic cools. Avoid twisting the tool, pulling on the insert, or installing the screw before the plastic has stabilized.
7. Inspect the Installation
Post-installation quality also affects M4 insert torque resistance.
After cooling, inspect the boss for cracks, bulging, tilted seating, plastic buildup, or thread contamination. A screw should enter smoothly without forcing or cross-threading.
Common Installation Failure Modes
Installation defects should be checked against M4 heat set insert failure modes.
1. Insert Tilt
Insert tilt happens when the insert is not installed along the boss axis. It can be caused by an angled tool, uneven pressure, poor pilot hole guidance, or pushing before the plastic softens evenly. Tilt can reduce torque resistance and cause screw alignment problems.
2. Boss Cracking During Installation
Boss cracking usually indicates too much radial stress. Common causes include a tight pilot hole, thin boss wall, brittle material, excessive insertion pressure, or insufficient edge distance. PLA is especially sensitive to this failure mode.
3. Shallow Seating
Shallow seating occurs when the insert does not reach the intended depth. This may happen when the insert is underheated, the hole is too tight, or the user stops too early. Shallow seating reduces insert engagement and can interfere with the mating part.
4. Over-Seating
Over-seating happens when the insert is pushed too deep into the boss. This can damage the boss base, reduce screw stack-up accuracy, or place the insert below the intended contact surface.
5. Weak Knurl Engagement
Weak knurl engagement occurs when plastic does not flow properly into the insert surface. Causes include oversized holes, insufficient heat, poor insert geometry, or movement during cooling. The insert may later spin or pull out.
6. Local Boss Deformation
Local deformation happens when the boss softens, bulges, or loses shape around the insert. This is more common when heat dwell is too long, the boss wall is thin, or the material has low heat resistance.
Why M4 Installation Is Different from M3 and M5
M4 is often a balanced size for functional 3D printed parts. Compared with M3, it provides more fastening capacity and more insert engagement, but it also requires more boss support and more controlled heat. Compared with M5, it usually requires less heat and less structural volume, making it easier to install in medium-size printed parts.
This makes M4 a practical choice when M3 may be too light and M5 may be too large. However, M4 still needs proper installation. Poor hole fit, tilted seating, or overheated plastic can remove the advantage of using a larger insert.
When M4 Installation Risk Is High
- The boss wall is thin relative to the insert outside diameter.
- The insert is close to an edge, corner, cutout, or slot.
- The pilot hole varies because of print shrinkage or poor calibration.
- The insert is installed by hand without a vertical guide.
- The material softens easily or has weak layer adhesion.
- The screw will be tightened strongly after installation.
- The boss base is shallow or poorly connected to the main printed body.
Related Engineering Guides
- M4 Heat Set Insert Dimensions Reference for 3D Printed Parts
- M4 Heat Set Insert Hole Size for 3D Printed Parts
- M4 Heat Set Insert Boss Design for 3D Printed Parts
- M4 Heat Set Insert Pull-Out Strength for 3D Printed Parts
- Heat Set Insert Installation Temperature for 3D Printed Parts
- Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts
- Heat Set Insert Seating Depth Reference for 3D Printed Parts
- Heat Set Insert Hole Depth Chart for 3D Printed Parts
- PLA vs PETG vs ABS for Threaded Inserts
FAQ
What makes M4 heat set insert installation different from M3?
M4 inserts usually need more heat, more boss support, and more careful seating than M3 inserts because they have a larger outside diameter and create more installation stress in the printed boss.
Should an M4 heat set insert be installed flush with the surface?
In many designs, the insert is seated flush with the boss top surface, but the correct seating depth depends on insert length, hole depth, screw engagement, and mating part stack-up. The insert should not bottom out or sink unpredictably into the boss.
Why does an M4 insert tilt during installation?
Insert tilt usually happens when the tool is angled, the pilot hole does not guide the insert straight, the insert is pushed before the plastic softens, or the boss geometry is uneven. Tilt can reduce torque resistance and pull-out strength.
Can too much heat weaken an M4 heat set insert joint?
Yes. Excessive heat can soften the boss, smear plastic around the knurls, cause the insert to sink or tilt, and reduce long-term retention. The goal is controlled plastic flow, not full boss softening.
When should I avoid using M4 inserts in a printed part?
Avoid M4 inserts when the boss cannot provide enough wall thickness, base support, or edge distance. If the available geometry is too compact, M3 may be more reliable. If the load is much higher, M5 or a redesigned fastening structure may be needed.
