M4 heat set insert torque resistance depends on how well the insert knurls, pilot hole, boss wall thickness, boss outside diameter, printed material, and screw tightening load work together to prevent the insert from rotating inside a 3D printed boss.
M4 inserts are commonly used in functional printed parts because they offer more fastening strength than M3 while requiring less boss volume and installation heat than M5. This makes M4 a practical choice for brackets, fixtures, covers, tool mounts, equipment housings, and medium-load assemblies where screw preload and repeated service matter.
This article explains the main engineering variables that affect M4 heat set insert torque resistance in 3D printed parts, including insert spin, pilot hole fit, boss support, material behavior, screw alignment, installation quality, and common torque-related failure modes.

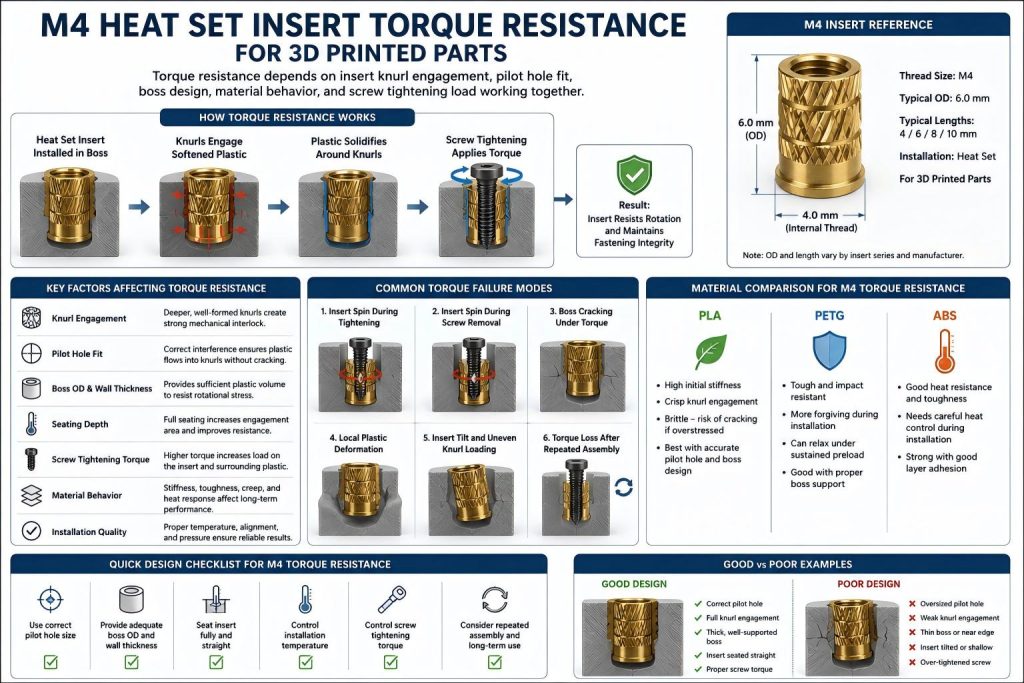

Engineering Overview
Torque resistance is the ability of a heat set insert to resist rotation when a screw is tightened, loosened, or loaded during service. In a 3D printed part, this resistance comes mainly from mechanical engagement between the insert knurls and the softened plastic around the pilot hole.
For M4 inserts, torque resistance is a balanced design problem. M4 has more outside surface area and more fastening capacity than M3, but it also applies more screw torque and requires a larger boss. Compared with M5, M4 is easier to package into printed parts and usually needs less heat during installation, but it can still spin, crack the boss, or deform the surrounding plastic if the geometry is not strong enough.
An M4 insert should not be judged only by thread size. The actual anti-rotation performance depends on insert outside diameter, knurl geometry, pilot hole fit, boss wall thickness, seating depth, material stiffness, and how the screw is tightened.
Typical Reference Factors for M4 Torque Resistance
The table below provides typical reference values and engineering starting points. These are not guaranteed torque ratings. Actual torque resistance depends on insert series, knurl pattern, printed material, print orientation, hole tolerance, installation heat, boss geometry, and screw tightening method.
| Design Variable | Effect on M4 Torque Resistance | Risk if Poorly Controlled | Engineering Note |
|---|---|---|---|
| Insert Size | M4 provides medium-to-high fastening capacity for functional printed parts | Can overload compact bosses if the printed structure is undersized | M4 is a practical middle size, but it still needs real boss support. |
| Insert Outside Diameter | Larger OD increases contact area and rotational grip | A boss designed only from thread size may have insufficient wall support | Torque resistance should be evaluated from actual insert OD and knurl geometry. |
| Knurl Engagement | Creates mechanical interlock against insert spin | Weak engagement allows the insert to rotate during tightening or removal | Plastic must flow cleanly into the knurls during installation. |
| Pilot Hole Fit | Controls how much plastic is displaced into the insert surface | Oversized holes reduce grip; tight holes can crack or bulge the boss | Good torque resistance comes from controlled interference, not excessive force. |
| Boss Outside Diameter | Provides surrounding plastic volume to resist rotational stress | Small boss OD may cause spin, cracking, or local deformation | M4 boss OD should scale with insert OD, not only screw diameter. |
| Boss Wall Thickness | Supports the insert against radial and rotational loading | Thin walls may split, bulge, or soften under torque load | Wall thickness is especially important near edges or thin covers. |
| Seating Depth | Improves engagement along the insert length | Shallow seating reduces rotational contact area | The insert should be fully seated without bottoming out or tilting. |
| Screw Tightening Torque | Directly controls rotational load applied to the insert | Over-tightening can spin the insert or crack the boss | M4 screws can generate enough torque to damage weak printed bosses. |
| Material Behavior | Controls stiffness, ductility, creep resistance, and heat response | PLA may crack; PETG may relax; ABS may soften if overheated | Material choice changes both installation quality and long-term torque resistance. |
Recommended Design Rules
- Design from insert OD and knurl geometry, not thread size alone. The M4 thread defines the screw, but the insert outside diameter and surface features define the anti-rotation interface.
- Do not oversize the pilot hole. A loose pilot hole may make installation easier, but it reduces plastic engagement and increases insert spin risk.
- Avoid excessive interference in brittle materials. A very tight pilot hole may seem stronger, but in PLA it can crack the boss before the insert develops useful torque resistance.
- Use enough boss OD and wall thickness. The printed boss must carry rotational load into the surrounding part. The insert cannot provide torque resistance by itself.
- Seat the insert straight and fully. A tilted or shallow insert reduces even knurl engagement and can spin under screw tightening or removal.
- Control screw tightening torque. M4 screws can apply meaningful torque. Over-tightening may damage the plastic interface even if the insert looks properly installed.
- Consider repeated assembly. A joint that resists torque during first assembly may still loosen after repeated screw cycles if the plastic creeps, wears, or deforms around the knurls.
- Choose M5 only when the printed structure can support it. If M4 torque resistance is not enough, moving to M5 may help only if the boss and surrounding part are also redesigned.
Material Adjustments for PLA, PETG, and ABS
PLA
PLA can provide good initial torque resistance because it is stiff and holds a crisp shape around the insert knurls. When the pilot hole and installation heat are controlled, an M4 insert in PLA can feel very secure during first assembly.
The main risk is brittleness. If the pilot hole is too tight, the boss wall is thin, or the screw is over-tightened, PLA may crack instead of deforming. In PLA, M4 torque failure often appears as sudden boss cracking, edge breakout, or stress whitening around the insert.
PETG
PETG is tougher and more forgiving during installation, which can reduce immediate boss cracking. However, PETG may relax under sustained screw preload and repeated tightening cycles.
For M4 torque resistance in PETG, the joint may feel acceptable at first but gradually lose rotational grip or preload stability. PETG bosses usually benefit from conservative wall thickness, stable seating depth, and controlled screw torque.
ABS
ABS can work well for functional M4 assemblies because it often handles heat and impact better than PLA. However, installation heat still needs control. If the insert is overheated, ABS around the knurls may soften too much and reduce mechanical lock.
For M4 torque resistance in ABS, avoid excessive heat dwell, tilted installation, and boss softening. Good print quality and layer adhesion are important because torque load must transfer from the insert into the surrounding printed structure.
Common Torque Failure Modes
1. Insert Spin During Tightening
Insert spin during tightening happens when the screw applies more torque than the plastic around the insert can resist. Common causes include an oversized pilot hole, weak knurl engagement, shallow seating, insufficient boss wall thickness, or excessive screw tightening torque.
2. Insert Spin During Screw Removal
Some inserts do not spin during first assembly but rotate when the screw is removed later. This can happen when the screw binds, the joint was over-tightened, the surrounding material relaxes, or the insert was never fully engaged with the plastic.
3. Boss Cracking Under Torque
Boss cracking under torque occurs when rotational stress travels into a boss that does not have enough wall thickness, edge distance, or material toughness. PLA is especially vulnerable, but PETG and ABS can also fail if the boss is compact or poorly supported.
4. Local Plastic Deformation
Local deformation occurs when the plastic around the insert yields, creeps, or softens instead of holding the insert rigidly. This is common in PETG under sustained preload or in ABS when installation heat damages the boss.
5. Insert Tilt and Uneven Knurl Loading
If the insert is installed at an angle, one side of the knurl pattern carries more load than the other. This uneven engagement reduces torque resistance and can cause screw misalignment, insert spin, or boss wall damage.
6. Torque Loss After Repeated Assembly
M4 inserts are often used in serviceable parts. If the screw is removed and reinstalled repeatedly, the plastic around the knurls may wear, creep, or deform. The result is a joint that still looks intact but feels loose during tightening.
Why M4 Torque Resistance Is Different from M3 and M5
M4 sits in a practical middle ground. Compared with M3, it usually provides stronger screw engagement, larger insert surface area, and better torque potential. This makes it useful for functional printed parts that need more than light-duty fastening.
Compared with M5, M4 is easier to fit into printed parts and usually requires less boss volume and installation heat. However, it does not provide the same structural margin as M5 when the joint is exposed to high tightening torque, vibration, or heavy service loading.
M4 is often the right choice when M3 feels too light but M5 would force an oversized boss. Its torque resistance is strongest when the boss is properly sized, the pilot hole is controlled, and the screw is not over-tightened.
When M4 Torque Resistance Is Usually Appropriate
- Functional brackets with moderate screw preload
- Tool mounts and fixture plates with enough boss volume
- Equipment covers that need stronger fastening than M3
- Medium-load printed housings and service panels
- Parts where M5 would require too much boss space
- Assemblies where screw tightening can be controlled
When M4 Torque Resistance May Not Be Enough
- The joint will be tightened with high torque or large hand tools.
- The part will experience vibration, shock, or repeated loosening.
- The boss wall is thin relative to the insert outside diameter.
- The insert is close to an edge, slot, corner, or cutout.
- The material is prone to creep, softening, or weak layer adhesion.
- The joint requires stronger long-term retention than the boss can support.
Related Engineering Guides
- M4 Heat Set Insert Dimensions Reference for 3D Printed Parts
- M4 Heat Set Insert Hole Size for 3D Printed Parts
- M4 Heat Set Insert Boss Design for 3D Printed Parts
- M4 Heat Set Insert Pull-Out Strength for 3D Printed Parts
- M4 Heat Set Insert Installation Guide for 3D Printed Parts
- M4 Heat Set Insert Failure Modes in 3D Printed Parts
- Torque Resistance of Heat Set Inserts in 3D Printed Parts
- Boss OD Ratio for Heat Set Inserts in 3D Printed Parts
- Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts
- Heat Set Insert Minimum Wall Thickness Reference for 3D Printed Parts
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- PLA vs PETG vs ABS for Threaded Inserts
FAQ
What controls M4 heat set insert torque resistance?
M4 heat set insert torque resistance is controlled by insert outside diameter, knurl engagement, pilot hole fit, boss outside diameter, boss wall thickness, seating depth, material behavior, installation quality, and screw tightening torque.
Why does an M4 heat set insert spin in a 3D printed part?
An M4 insert usually spins when the pilot hole is oversized, the knurls do not engage enough plastic, the boss wall is too thin, the insert is seated poorly, or the screw is tightened beyond what the printed boss can resist.
Is M4 torque resistance stronger than M3?
M4 usually has better torque resistance potential than M3 because it has more insert surface area and can use a larger boss. However, the printed part must provide enough wall thickness, edge distance, and material support.
Should I use M5 instead of M4 for better torque resistance?
Use M5 only when the printed part can support the larger boss, higher installation heat, and greater screw torque. If the part geometry is medium-sized, M4 may be more reliable than forcing an oversized M5 insert into a weak boss.
Does PETG provide good M4 torque resistance?
PETG can tolerate installation stress better than PLA, but it may relax under sustained preload. For M4 torque resistance in PETG, boss wall thickness, seating depth, and controlled screw tightening are important for long-term stability.
