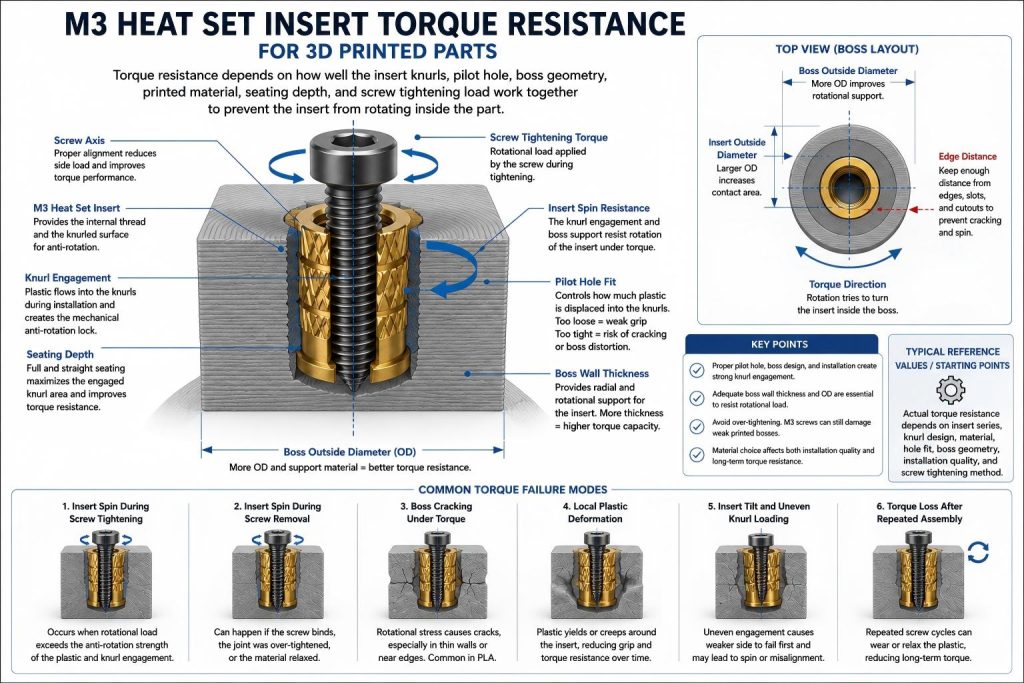

M3 heat set insert torque resistance depends on how well the insert knurls, pilot hole, boss geometry, printed material, seating depth, and screw tightening load work together to prevent the insert from spinning inside a 3D printed part.
M3 is one of the most common heat set insert sizes used in 3D printed assemblies. It is large enough for many functional brackets, covers, electronics housings, fixtures, and serviceable parts, but still compact enough to fit into small bosses. Because of this balance, M3 torque resistance is often the point where a printed fastening design either becomes reliable or starts to fail during repeated tightening.
This article explains the main engineering factors that affect M3 heat set insert torque resistance in 3D printed parts, including insert spin, pilot hole fit, boss wall thickness, material behavior, installation quality, and common torque-related failure modes.
Engineering Overview
Torque resistance is the ability of a heat set insert to resist rotation when a screw is tightened, loosened, or loaded in service. In a 3D printed part, torque resistance is created mainly by the mechanical lock between the insert knurls and the plastic surrounding the pilot hole.
For M3 heat set inserts, torque resistance is especially important because M3 is used across a wide range of printed parts. It may be used in light-duty electronics covers, medium-duty brackets, enclosure panels, printed jigs, and repeatedly serviced assemblies. The same M3 insert can perform very differently depending on M3 heat set insert hole size, M3 boss design, material, and screw tightening practice.
An M3 insert should not be evaluated only by thread size. The screw size tells you what fastener fits the insert, but torque resistance comes from the outer insert geometry, knurl engagement, seating depth, and the printed boss structure around it. For insert body geometry, see the M3 heat set insert dimensions reference.
Typical Reference Factors for M3 Torque Resistance
The table below provides typical reference values and engineering starting points. These are not guaranteed torque ratings. Actual torque resistance depends on insert series, knurl pattern, printed material, print orientation, pilot hole tolerance, boss geometry, installation heat, and screw tightening method.
| Design Variable | Effect on M3 Torque Resistance | Risk if Poorly Controlled | Engineering Note |
|---|---|---|---|
| Insert Size | M3 is a common balanced size for many printed assemblies | Can still spin or crack the boss if geometry is weak | M3 is more forgiving than M2.5, but it is not immune to torque failure. |
| Insert Outside Diameter | Larger OD increases contact area and rotational grip | Designing only from thread size may leave the boss under-supported | Torque resistance should be based on actual insert OD and knurl geometry. |
| Knurl Engagement | Creates the anti-rotation lock between insert and plastic | Weak engagement allows insert spin during tightening or removal | Good installation should allow plastic to flow into the knurls cleanly. |
| Pilot Hole Fit | Controls plastic displacement during heat-set installation | Oversized holes reduce grip; tight holes can crack the boss | The best fit allows controlled plastic flow without excessive stress. |
| Boss Outside Diameter | Provides surrounding plastic volume to resist torque | Small bosses may deform, split, or allow insert rotation | Boss OD should scale with insert OD, not only screw size. |
| Boss Wall Thickness | Supports the insert against radial and rotational loading | Thin walls increase cracking, deformation, and edge breakout risk | Wall thickness becomes more important near edges and thin panels. |
| Seating Depth | Increases engagement area along the insert length | Shallow seating reduces anti-rotation contact | The insert should be seated fully and straight without bottoming out. |
| Screw Tightening Torque | Applies the rotational load that the insert must resist | Over-tightening can spin the insert or damage the boss | M3 screws are small but still capable of damaging weak printed bosses. |
| Material Behavior | Controls stiffness, toughness, creep, and heat response | PLA may crack; PETG may relax; ABS may soften if overheated | Material choice changes both installation and long-term torque behavior. |
Recommended Design Rules
- Design from insert OD, not thread size alone. The M3 screw size defines the internal thread, but anti-rotation strength comes from the insert outside diameter, knurl form, and plastic engagement.
- Use a controlled pilot hole fit. A loose hole may install easily but produce weak torque resistance. A tight hole may crack PLA or distort the boss before the insert locks properly.
- Do not rely on the insert alone. Torque resistance is created by the insert and the boss working together. The boss must have enough outside diameter, wall thickness, and base support to carry rotational load into the printed part.
- Seat the insert fully and vertically. A shallow or tilted insert reduces knurl engagement and can make the screw load uneven.
- Avoid over-tightening M3 screws. M3 fasteners may look small, but hand tightening with a hex key can still exceed the torque capacity of a weak printed boss.
- Consider repeated assembly. M3 inserts are often used in parts that are opened and closed multiple times. Repeated screw cycles can wear, creep, or loosen the plastic around the insert.
- Use material-specific design judgment. PLA, PETG, and ABS do not fail the same way. The same pilot hole and boss design may behave differently across materials.
Material Adjustments for PLA, PETG, and ABS
PLA
PLA can provide good initial torque resistance because it is stiff and holds printed geometry well. When the pilot hole is correct and the insert is seated cleanly, PLA can form a crisp mechanical lock around the insert knurls.
The main risk is cracking. PLA is brittle compared with PETG, so a tight pilot hole, thin boss wall, or excessive screw torque can cause boss cracking instead of gradual deformation. In PLA, M3 torque failure often appears as a sudden crack, edge breakout, or stress whitening around the boss.
For PLA, avoid forcing the insert into a tight hole. Use enough boss wall thickness and avoid placing the M3 boss too close to an edge.
PETG
PETG is tougher than PLA and usually tolerates installation stress better. It is less likely to crack immediately during insert installation, which can make M3 inserts feel forgiving in PETG parts.
However, PETG can relax under sustained screw preload and repeated tightening cycles. A PETG boss may hold the insert well at first but gradually lose torque resistance if the wall is thin, the screw is over-tightened, or the joint is used in a warm environment.
For PETG, conservative boss support and controlled screw tightening are important for long-term torque stability.
ABS
ABS can work well for functional M3 assemblies, especially when heat resistance and impact tolerance matter. However, installation heat must be controlled. If the insert overheats the surrounding plastic, the boss may soften too much and reduce knurl definition.
For ABS, torque resistance depends heavily on clean installation, stable seating depth, and good layer adhesion. Avoid excessive heat dwell, tilted insertion, and weak boss bases.
Common Torque Failure Modes
For size-specific diagnosis, compare torque problems with M3 insert spin and torque failure.
1. Insert Spin During Screw Tightening
Insert spin occurs when the screw applies more rotational load than the plastic around the insert can resist. This usually happens when the pilot hole is oversized, the insert is seated too shallow, the knurls do not engage enough plastic, or the boss wall is too thin.
2. Insert Spin During Screw Removal
Some M3 inserts hold during first tightening but spin when the screw is removed. This can happen when the screw binds, the joint was over-tightened, the material relaxed around the insert, or the insert never formed a strong anti-rotation lock.
3. Boss Cracking Under Torque
Boss cracking occurs when rotational stress transfers into a boss that does not have enough wall thickness, edge distance, or material toughness. PLA is especially sensitive to this failure mode, but PETG and ABS can also crack or deform if the boss is too compact.
4. Local Plastic Deformation
Local deformation happens when the plastic around the insert yields, creeps, or softens instead of holding the insert rigidly. This is common in PETG under sustained preload or in ABS if installation heat damages the boss.
5. Insert Tilt and Uneven Knurl Loading
A tilted insert does not engage the plastic evenly. One side of the insert carries more torque load than the other, which can lead to insert spin, screw misalignment, boss cracking, or poor repeated assembly behavior.
6. Torque Loss After Repeated Assembly
Torque resistance should be checked together with M3 heat set insert installation.
M3 inserts are often used in serviceable parts. If the screw is removed and reinstalled many times, the plastic around the knurls may wear or relax. The joint may still look normal but feel loose during tightening.
Why M3 Torque Resistance Is Different from M2.5 and M4
M3 sits between compact and medium-duty insert design. Compared with M2.5, M3 usually offers more insert surface area, better screw handling, and more boss volume. This makes it more forgiving for general-purpose 3D printed assemblies.
Compared with M4, M3 requires less boss space and less installation heat, but it also provides less torque margin. M4 heat set insert torque resistance may be a better reference when the joint needs stronger clamping, higher torque resistance, or more durable repeated assembly.
M3 is often the right choice when the part needs a reliable threaded insert without making the boss too large. Its torque resistance is strongest when the pilot hole, boss OD, wall thickness, and material choice are treated as one system.
When M3 Torque Resistance Is Usually Appropriate
- Electronics housings and service covers
- Small to medium 3D printed brackets
- Enclosure panels with moderate screw preload
- Fixtures and jigs with controlled tightening
- Parts where M2.5 feels too small but M4 is too large
- Assemblies opened occasionally or moderately often
When M3 Torque Resistance May Not Be Enough
- The screw will be tightened with high torque.
- The joint will experience vibration, shock, or repeated loosening.
- The boss wall is thin relative to the insert outside diameter.
- The insert is close to an edge, slot, corner, or cutout.
- The part uses PETG in a warm or sustained-load environment.
- The assembly requires stronger long-term retention than the boss can support.
Related Engineering Guides
- M3 Heat Set Insert Dimensions Reference
- M3 Heat Set Insert Hole Size for 3D Printed Parts
- M3 Heat Set Insert Boss Design for 3D Printed Parts
- M3 Heat Set Insert Pull-Out Strength for 3D Printed Parts
- Torque Resistance of Heat Set Inserts in 3D Printed Parts
- Boss OD Ratio for Heat Set Inserts in 3D Printed Parts
- Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts
- Heat Set Insert Minimum Wall Thickness Reference for 3D Printed Parts
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- PLA vs PETG vs ABS for Threaded Inserts
FAQ
What controls M3 heat set insert torque resistance?
M3 heat set insert torque resistance is controlled by insert outside diameter, knurl engagement, pilot hole fit, boss wall thickness, boss outside diameter, seating depth, printed material behavior, and screw tightening torque.
Why does an M3 heat set insert spin in a 3D printed part?
An M3 insert usually spins when the pilot hole is oversized, the knurls do not engage enough plastic, the boss wall is too thin, the insert is seated poorly, or the screw is tightened beyond what the printed boss can resist.
Is M3 torque resistance enough for functional 3D printed parts?
M3 torque resistance is often enough for electronics housings, covers, moderate brackets, and serviceable printed parts. For higher torque, vibration, or repeated service loads, M4 may be a better choice.
Does PETG provide better M3 torque resistance than PLA?
PETG is tougher during installation, but it can relax under sustained preload. PLA may provide a stiffer initial lock but can crack if the boss is too thin or the pilot hole is too tight.
When should I use M4 instead of M3?
Use M4 instead of M3 when the joint needs higher torque resistance, stronger screw preload, more durable repeated assembly, or better resistance to service loads, and when the printed part has enough boss space to support M4 properly.
