M5 Heat Set Insert Failure Modes in 3D Printed Parts

M5 heat set insert failure modes usually come from a mismatch between the large insert size, high screw tightening torque, pilot hole fit, boss wall support, installation heat, printed material behavior, and the load path inside the 3D printed part.

M5 inserts are often selected when a printed assembly needs stronger fastening than M3 or M4. They can be useful in functional brackets, fixtures, equipment mounts, large housings, and structural printed assemblies. However, M5 inserts also create higher installation heat, larger radial expansion, stronger screw preload, and greater torque load than smaller insert sizes.

This article explains the most common M5 heat set insert failure modes in 3D printed parts, including insert spin, boss cracking, pull-out, boss base failure, local deformation, insert tilt, edge breakout, and installation-related damage.

Engineering Overview

For the broader failure framework, see the heat set insert failure guide.

An M5 heat set insert does not fail only at the brass insert. In most printed parts, the failure occurs in the surrounding system: the pilot hole, boss wall, boss base, surrounding material, edge distance, screw path, or printed layer structure.

M5 is a large fastening node for many FDM printed parts. The insert may be strong, but the printed boss must be strong enough to support the larger screw torque and preload. If the boss is undersized, too close to an edge, overheated during installation, or printed in a material with poor creep resistance, the joint can fail even when the insert itself is properly manufactured.

For M5 designs, failure diagnosis should focus on the full fastening structure rather than the screw size alone. A spinning insert, cracked boss, tilted insert, or pulled-out boss often traces back to the same engineering causes: poor hole fit, insufficient wall thickness, weak base support, uncontrolled heat, misalignment, or using M5 where the printed geometry cannot support it.

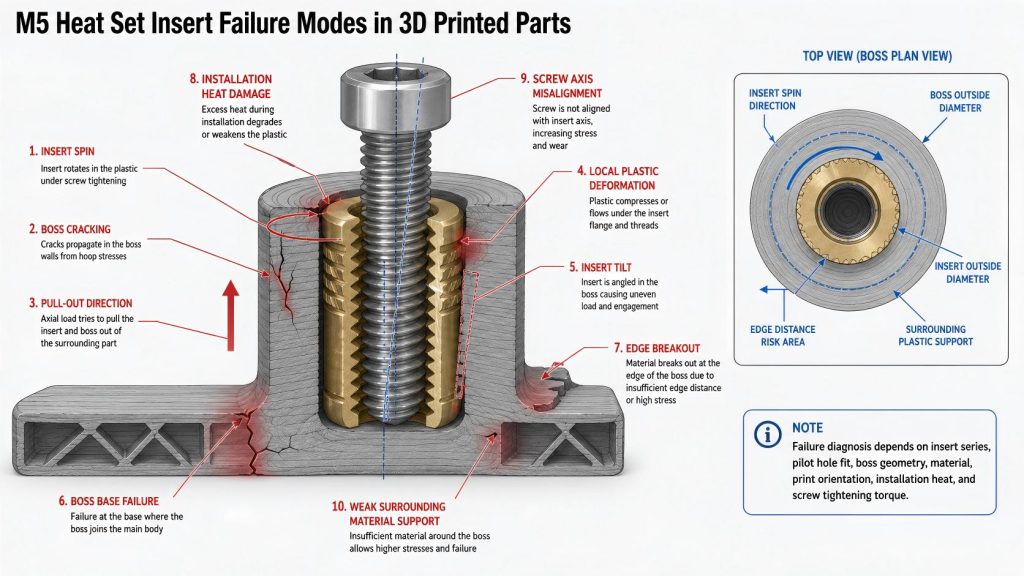

Typical M5 Heat Set Insert Failure Modes

The table below provides engineering starting points for diagnosing M5 insert failures. These are not universal test results. Actual failure behavior depends on insert series, knurl design, printed material, boss geometry, pilot hole tolerance, print orientation, installation heat, and service loading.

Failure Mode	Common Cause	Visible Symptom	Engineering Diagnosis
Insert Spin	High screw torque, oversized pilot hole, weak knurl engagement, or insufficient boss support	Insert rotates when screw is tightened or removed	The plastic around the insert cannot resist rotational load.
Boss Cracking	Tight pilot hole, thin boss wall, excessive insertion force, poor edge distance, or brittle material	Crack along boss wall or toward nearby edge	The boss cannot absorb radial expansion, installation stress, or screw torque.
Pull-Out	Insufficient seating depth, weak boss base, poor layer orientation, or high axial load	Insert lifts out of the boss with or without surrounding plastic	The insert does not have enough axial retention or load transfer into the part.
Boss Base Failure	Large screw preload, shallow base, weak part connection, or poor load path	Boss separates from part body or deforms below the insert	The insert may be strong, but the base cannot carry the load into the printed structure.
Local Plastic Deformation	Excess heat, material softening, PETG creep, high preload, or compact boss geometry	Boss bulges, sinks, softens, or loses shape around the insert	The plastic yields or creeps instead of maintaining stable insert engagement.
Insert Tilt	Off-axis installation, uneven heating, poor pilot hole guidance, or angled screw path	Insert sits at an angle or screw does not enter smoothly	Uneven engagement creates side load, torque imbalance, and reduced joint reliability.
Edge Breakout	Insert placed too close to an edge, slot, corner, or thin wall	Crack or fracture travels from boss toward nearby boundary	The surrounding printed material does not provide enough support for an M5 fastening node.
Installation Heat Damage	Excessive heat dwell, large insert thermal mass, or overheated tool	Softened boss, sunken insert, smeared plastic, or weak knurl definition	The installation process damaged the plastic before the joint entered service.

Failure Mode 1: Insert Spin

Insert spin is one of the most important M5 heat set insert failure modes. It occurs when the screw applies more rotational load than the surrounding plastic can resist. Because M5 screws can generate higher tightening torque than smaller screws, insert spin can happen even when the insert appears well seated.

Common causes include an oversized pilot hole, weak plastic flow into the knurls, insufficient boss wall thickness, poor seating depth, or over-tightening with a large tool. Insert spin may also happen during screw removal if the screw binds or the plastic has relaxed around the insert after service.

For M5, insert spin is rarely just an insert problem. It usually means the boss geometry, pilot hole fit, material, and tightening method were not designed as one system.

Failure Mode 2: Boss Cracking

If cracking appears around the insert cavity, check whether the design follows a suitable boss OD ratio.

Boss cracking happens when the printed boss cannot absorb installation stress, radial expansion, or screw torque. M5 inserts create more expansion and heat than smaller inserts, so the boss wall must be large enough to resist splitting.

PLA is especially vulnerable to sudden cracking because it is stiff and brittle. PETG may deform before cracking, while ABS may soften if too much heat is applied. Cracks often begin along the thinnest boss wall, near an edge, or along a weak layer boundary.

If an M5 boss cracks during installation, the cause is often a combination of tight pilot hole fit, insufficient wall thickness, high insertion pressure, and poor edge distance.

Failure Mode 3: Pull-Out

Pull-out occurs when the insert moves upward along the screw axis and separates from the printed part. In M5 designs, pull-out may involve the insert alone, the boss wall, or a larger section of the boss base.

This failure can come from insufficient seating depth, shallow insert engagement, poor layer orientation, weak boss base thickness, or axial service loads that exceed the printed structure. M5 inserts can provide strong thread engagement, but the printed part must still transfer that load into surrounding material.

If the insert pulls out with surrounding plastic attached, the weak point may be the boss structure rather than the insert interface.

Failure Mode 4: Boss Base Failure

Boss base failure is especially important for M5. A large insert can remain locked inside the boss while the base below the boss deforms, tears, or separates from the main printed body.

This happens when the boss is designed as a tall local cylinder without enough connection to the larger part structure. Under screw preload, torque, pull-out load, or vibration, the load path concentrates at the bottom of the boss instead of spreading into the printed part.

For M5 inserts, the boss base should be treated as part of the fastening structure. A thick boss wall alone is not enough if the base cannot transfer load.

Failure Mode 5: Local Plastic Deformation

Local deformation occurs when the plastic around the insert yields, creeps, softens, or compresses. This failure may not look dramatic, but it can reduce screw preload, torque resistance, and long-term joint stability.

PETG is often associated with gradual deformation because it can relax under sustained preload. ABS can deform if overheated during installation. PLA may crack instead of deforming, but local crushing or stress whitening can still appear around the insert.

In M5 joints, local deformation often means the screw load is too high for the boss geometry or the installation process overheated the plastic around the insert.

Failure Mode 6: Insert Tilt

Insert tilt occurs when the insert is not installed on the intended screw axis. In M5 parts, tilt can be caused by hand installation without a guide, uneven heat transfer, a poorly printed pilot hole, or pushing the insert before the plastic softens evenly.

A tilted insert reduces both torque resistance and pull-out strength. It also creates screw misalignment, which can increase side loading during assembly. With M5 screws, side loading can be more damaging because the screw is larger and can apply more leverage to the boss.

If the screw does not enter smoothly after installation, do not force it. The insert may be tilted, contaminated with plastic, or misaligned with the mating part.

Failure Mode 7: Edge Breakout

Edge breakout occurs when the boss cracks or tears toward a nearby edge, corner, slot, cutout, or thin wall. This is common when a design places an M5 insert into a compact area without enough surrounding material.

M5 inserts need more edge distance than smaller inserts because the boss must carry larger installation stress and screw loading. If the boss is close to a boundary, the shortest failure path may be outward toward the edge rather than through the insert interface.

For M5, edge distance should not be treated as leftover space. It is part of the fastening design.

Failure Mode 8: Installation Heat Damage

M5 inserts have more thermal mass than smaller inserts, so they require more heat energy to install. However, more heat does not mean uncontrolled heat. Excessive dwell time, overheating, or aggressive pressure can soften too much plastic around the boss.

Heat damage may appear as a sunken insert, melted boss top, weak knurl definition, boss bulging, or insert tilt. The joint may look seated but later fail by spin, pull-out, or loss of preload.

For M5 installation, the goal is controlled plastic flow into the knurls, not full boss softening.

Material-Specific Failure Patterns

PLA

PLA often fails sharply. For M5 inserts, common PLA failure patterns include boss cracking, edge breakout, stress whitening, and brittle fracture around the insert. PLA may provide strong initial stiffness, but it does not tolerate tight pilot holes, thin walls, or excessive insertion pressure well.

PETG

PETG often fails gradually. It may survive installation without cracking, but it can creep or deform under sustained screw preload. For M5 inserts, PETG failure patterns include insert spin after service, torque loss, local boss deformation, and long-term preload relaxation.

ABS

ABS failure depends strongly on print quality and installation heat control. ABS may work well for functional M5 joints, but overheating can soften the boss and reduce knurl engagement. Common ABS failure patterns include local deformation, insert tilt, boss softening, and weakened base support.

How to Reduce M5 Heat Set Insert Failures

• Confirm that M5 is appropriate for the printed geometry. Do not choose M5 if the part cannot provide enough boss OD, wall thickness, edge distance, and base support.
• Design from insert OD, not screw size alone. Boss dimensions should be based on the insert outside diameter and knurl geometry.
• Use a pilot hole that matches the insert and material. Oversized holes increase spin and pull-out risk. Tight holes increase cracking and installation damage.
• Provide generous boss wall thickness. M5 inserts need more radial and rotational support than smaller insert sizes.
• Strengthen the boss base. The base must transfer screw preload, pull-out load, and torque into the main printed part.
• Control installation heat and vertical alignment. M5 inserts require more heat energy, but overheating and tilt can damage the joint before use.
• Avoid placing M5 bosses too close to edges. Edge distance is a structural variable, not cosmetic spacing.
• Control screw tightening torque. M5 screws can exceed the torque capacity of the printed boss if tightened aggressively.
• Consider service conditions. Vibration, repeated assembly, temperature, and sustained preload can expose weaknesses that do not appear during first assembly.

When M5 Failure Risk Is High

• The boss is only slightly larger than the insert outside diameter.
• The insert is close to an edge, corner, slot, or cutout.
• The boss base is shallow or poorly connected to the main part body.
• The screw is tightened with a large tool and no torque control.
• The material is prone to creep, softening, or brittle cracking.
• The insert is installed by hand without vertical guidance.
• The joint carries vibration, impact, or repeated service loads.
• The part uses M5 because the screw seems stronger, even though the printed structure is not large enough.
