Heat Set Inserts for Robot Joint Service Panels

Heat set inserts for robot joint service panels are used when a 3D printed robot assembly needs removable covers, joint access plates, actuator inspection panels, wiring service covers, or maintenance panels around moving mechanical joints.

This application is different from a general robotics enclosure. A robot joint service panel may be opened repeatedly for belt tension adjustment, bearing inspection, motor replacement, wiring repair, encoder access, lubrication checks, or prototype iteration. The fastening structure must survive repeated screw removal, vibration, joint movement, preload loss, and local stress around the printed boss.

For broader robotics fastening context, see Heat Set Inserts for Robotics Assemblies.

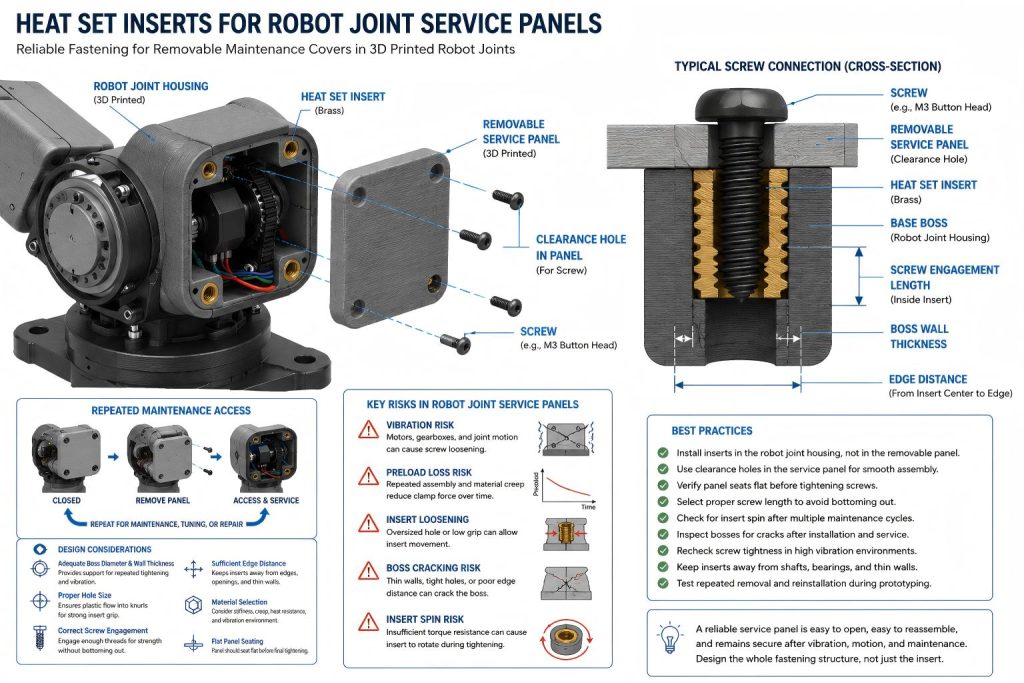

Engineering diagram of heat set inserts for robot joint service panels, showing a removable maintenance cover, clearance holes, screws, brass inserts, printed bosses, screw engagement, edge distance, vibration risk, and repeated service access.

Why Robot Joint Service Panels Need a Separate Insert Design Approach

Robot joints often combine motion, vibration, service access, and compact geometry. A removable panel near a joint is not just a cover. It may sit close to a motor, pulley, bearing, gear train, linkage, shaft, cable path, or structural bracket.

This means the insert joint may experience more than simple screw clamping. It may also be affected by:

repeated maintenance access
vibration from motors or gearboxes
cyclic loading from joint movement
local stress near thin printed walls
reduced edge distance around compact bosses
screw preload changes after repeated tightening
material creep in PETG or nylon-based prints
assembly misalignment when panels are removed and reinstalled

For this reason, robot joint service panels should be designed as repeated-service fastening structures, not just as cosmetic covers with screws.

Typical Robot Joint Service Panel Use Cases

Heat set inserts may be useful in 3D printed robot assemblies when service access is needed around moving or load-bearing areas.

Common examples include:

actuator access covers
motor mount service panels
belt tension adjustment covers
bearing inspection plates
encoder access covers
gearbox inspection panels
wiring channel covers
joint calibration access panels
removable prototype brackets
robot arm joint covers

In these applications, the insert allows the panel to be removed without cutting new threads into the printed plastic each time.

Main Failure Modes in Robot Joint Service Panels

Insert Loosening from Repeated Maintenance

A service panel may be removed many times during testing, tuning, or repair. If the insert hole is oversized, the boss is weak, or the material relaxes under preload, the insert can become loose over time.

Vibration-Related Insert Failure

Robot joints often sit near motors, servos, gearboxes, belts, or moving linkages. These components can introduce vibration into the fastened panel. If the insert joint has low torque resistance or poor preload stability, the screw may loosen and the insert may begin to move in the boss.

Boss Cracking Near Compact Joint Geometry

Robot joint parts often have limited space. A service panel boss may be placed close to a corner, wall, shaft opening, or load path. If the boss wall is too thin, the insert can crack the printed structure during installation or screw tightening.

Insert Spin During Reassembly

If a screw is tightened repeatedly into an insert with low torque resistance, the insert may eventually rotate inside the printed boss. This is more likely when the printed hole is too large, the knurl engagement is weak, or the screw is overtightened.

Edge and Thin Wall Failure

Service panels around robot joints are often placed in compact mechanical zones. If the insert is too close to an edge or thin wall, repeated tightening can split the plastic, deform the panel support, or reduce pull-out resistance.

Design Variables for Robot Joint Service Panels

A reliable robot joint service panel should be designed around the complete fastening structure, not only around the insert size.

Design Variable	Why It Matters in Robot Joint Service Panels
Insert size	Affects thread engagement, pull-out strength, torque resistance, and available boss geometry.
Boss diameter	Controls how much printed material supports the insert under repeated screw tightening.
Boss depth	Helps prevent insert bottoming, proud inserts, and weak axial support.
Hole size	Controls plastic flow, insert grip, boss stress, and installation reliability.
Edge distance	Reduces the risk of cracking near compact joint walls or corners.
Screw engagement length	Controls clamp stability without bottoming out inside the insert or boss.
Panel stiffness	A flexible service panel may lose preload or transfer uneven load into the inserts.
Vibration exposure	Motor and joint motion can reduce preload and increase loosening risk.
Material behavior	PLA, PETG, ABS, nylon, and carbon fiber nylon behave differently under heat, preload, and cyclic loading.

For general hole design, see the Heat Set Insert Hole Size Guide. For boss design, see How to Design Bosses for Heat Set Inserts.

Recommended Fastening Structure

For robot joint service panels, the insert is usually best installed in the fixed base structure, joint housing, or main printed bracket. The removable service panel should normally use clearance holes for the screws.

This structure helps the screw clamp the service panel into the main body without cutting new plastic threads into the removable panel.

A typical robot joint service panel fastening structure includes:

heat set inserts installed in the main joint housing or base bracket
clearance holes in the removable service panel
enough boss diameter around each insert
enough boss depth for full insert seating
controlled screw engagement length
adequate edge distance from moving openings or thin walls
a panel that seats flat before screw tightening

The screw should clamp the panel. It should not be used to pull a warped or misaligned service panel into position.

Hole Size and Installation Fit

Hole size is critical in robot joint service panels because repeated maintenance and vibration can expose weak insert installation. If the hole is too large, the insert may not resist screw torque. If the hole is too small, the boss may crack or deform during installation.

Printed hole accuracy should be checked with the actual insert and material combination. This is especially important when the joint housing is printed with thicker walls, fiber-filled filament, or high-temperature material.

Screw Engagement in Service Panels

Screw engagement length should be long enough to provide stable clamping, but not so long that the screw bottoms out inside the insert or below the insert cavity.

Robot service panels may be opened many times during testing. A screw that is too short may feel loose after several cycles. A screw that is too long may create false tightening resistance or damage the insert joint.

When checking screw engagement, consider:

service panel thickness
washer thickness, if used
insert thread depth
boss depth
clearance below the insert
expected number of maintenance cycles
vibration level near the joint

For deeper reference, see Screw Engagement Length for Heat Set Inserts in 3D Printed Parts.

Material Behavior Around Robot Joints

Material choice affects how the insert joint behaves under repeated service and motion.

PLA can provide stiffness, but it may crack if the boss is thin, the hole is too tight, or the joint sees shock loading. PETG is tougher, but it may lose preload over time because of creep. ABS can handle installation heat better than PLA, but still depends on boss geometry and hole fit. Nylon and carbon fiber nylon may provide better toughness for robot structures, but printed tolerance, moisture behavior, and local stress concentration still matter.

If the service panel is near a warm motor or enclosed electronics, thermal behavior should also be considered. Heat can reduce plastic stiffness and accelerate preload loss.

For material comparison, see PLA vs PETG vs ABS for Threaded Inserts. For stronger robot structures, see Heat Set Inserts in Carbon Fiber Nylon 3D Printed Parts.

Vibration and Preload Loss

Robot joint service panels may sit close to motors, gearboxes, belts, wheels, or moving arms. These sources can create vibration and repeated load changes in the fastened panel.

If screw preload drops, the panel may begin to move slightly. Small motion can increase wear at the screw hole, reduce insert stability, and make future loosening more likely.

To reduce vibration-related problems:

keep the panel seated flat before tightening
avoid unsupported flexible panel edges
use enough screw engagement
avoid placing inserts too close to thin walls
check preload after several service cycles
consider washers if the panel material is soft or thin

For related failure logic, see Why Does Screw Preload Drop in 3D Printed Insert Joints?.

Repeated Assembly Design Checks

Before relying on heat set inserts in a robot joint service panel, check the following:

Confirm the insert dimensions and hole size for the selected insert.
Print a test coupon using the same material and print settings.
Check whether the service panel seats flat without screw force.
Confirm that the boss is not too close to an edge, shaft opening, or thin wall.
Verify that the screw length does not bottom out.
Check that the panel can be removed and reinstalled several times.
Check for insert spin after repeated tightening.
Inspect the boss for cracks after installation and service cycling.
Check whether vibration causes screw loosening.
Confirm that wiring, bearings, belts, or moving parts are not loaded by the panel fasteners.

For broader repeated assembly design, see Heat Set Inserts for Repeated Assembly in 3D Printed Parts.

When Heat Set Inserts Are a Good Fit

Heat set inserts are a good fit for robot joint service panels when the design needs:

repeated maintenance access
stronger threads than printed plastic threads
controlled screw engagement
serviceable actuator or motor covers
removable panels near wiring or sensors
compact but durable fastening points
better long-term assembly reliability during prototyping

They are especially useful in robots that are still being tuned, repaired, upgraded, or frequently opened during development.

When the Design Needs More Caution

Heat set inserts need more caution when:

the joint housing is very thin
the insert is close to a moving shaft or bearing opening
the service panel is flexible or warped
the boss is close to an edge or corner
the robot joint sees vibration or impact
the material is PETG under sustained preload
the screw may be removed very frequently
the insert is placed directly in a high-stress structural load path

If the insert is part of a highly loaded robot structure rather than a removable service panel, the design should also consider pull-out strength and torque resistance. See Pull-Out Strength of Heat Set Inserts in 3D Printed Parts and Torque Resistance of Heat Set Inserts in 3D Printed Parts.

Practical Summary

Heat set inserts for robot joint service panels should be designed as repeated-service fastening points near moving mechanical structures. The insert, boss, screw, service panel, printed material, edge distance, screw engagement length, and vibration environment all affect reliability.

A good robot joint service panel should be easy to remove, easy to reinstall, and stable after repeated maintenance cycles. The insert joint should not spin, crack the boss, lose preload too quickly, or rely on screw force to correct poor panel fit.

For robot joints, the fastening question is not only whether the insert holds once. The more important question is whether the service panel remains reliable after motion, vibration, maintenance access, and repeated reassembly.

FAQ

Are heat set inserts useful for robot joint service panels?

Yes. Heat set inserts are useful when a robot joint service panel needs to be removed and reinstalled during maintenance, tuning, repair, or prototype development.

Should the insert be installed in the panel or the main robot structure?

In most cases, the insert should be installed in the main joint housing, base bracket, or fixed structure. The removable service panel should usually use clearance holes.

Why do inserts loosen in robot service panels?

Inserts can loosen because of repeated screw removal, vibration, oversized printed holes, weak boss geometry, preload loss, PETG creep, or excessive screw torque.

What causes boss cracking near robot joints?

Boss cracking can be caused by thin walls, tight holes, overheating during installation, poor edge distance, brittle material behavior, or screw tightening force near compact joint geometry.

Do robot joints need stronger materials for insert joints?

Not always, but material behavior matters. PLA may crack, PETG may creep, ABS may handle heat better, and nylon or carbon fiber nylon may offer better toughness if printed and designed correctly.

Should robot service panels be tested through repeated assembly cycles?

Yes. A simple repeated removal and reassembly test can reveal insert spin, boss cracking, screw bottoming, preload loss, vibration loosening, and panel fit problems before the design is used in a working robot.
