M2.5 heat set insert dimensions are important when designing compact 3D printed parts that need stronger reusable threads than printed plastic can provide. M2.5 inserts sit between very small M2 inserts and the more common M3 size, making them useful for electronics housings, compact brackets, sensor mounts, lightweight fixtures, and serviceable prototype assemblies.
This reference explains the main M2.5 heat set insert dimensions that matter in 3D printed parts, including insert length, outside diameter, printed hole size, boss diameter, boss depth, wall thickness, screw engagement length, and material-related design limits.
M2.5 heat set insert dimensions are not universal. Different manufacturers use different body diameters, knurl patterns, pilot diameters, lengths, and recommended hole sizes. Always confirm the actual insert datasheet before finalizing the printed hole.

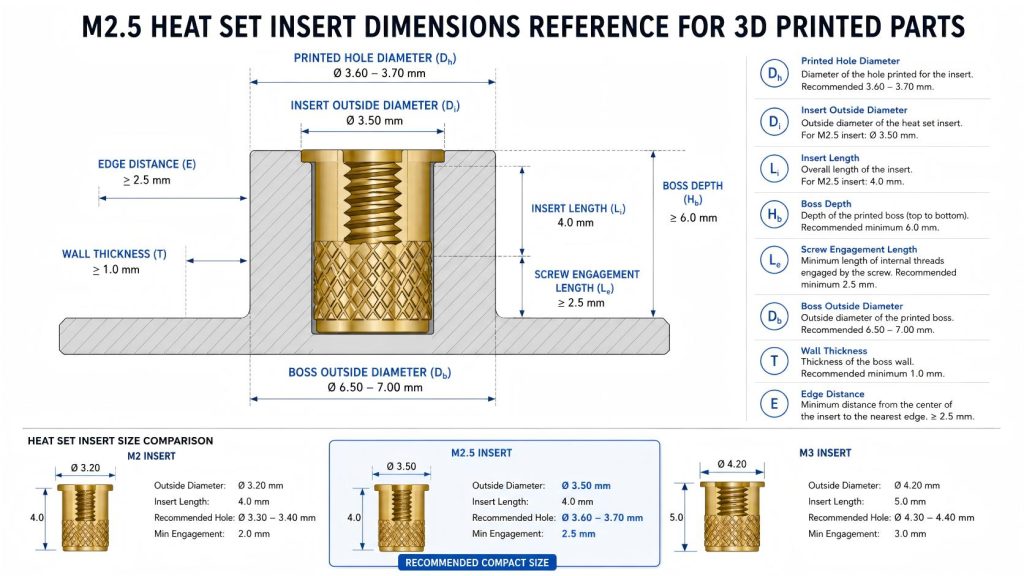

Typical M2.5 Heat Set Insert Dimensions
A typical M2.5 heat set insert is a small brass threaded insert with an internal M2.5 thread and an external knurled or patterned body. During heat installation, the surrounding thermoplastic softens and flows around the insert body to create mechanical retention.
As a practical reference, some M2.5 heat set insert specifications list values around a 4.1 mm printed hole diameter and around 4.2 mm hole depth. Other M2.5 insert styles may use different outside diameters, pilot hole sizes, and lengths depending on the supplier and geometry.
These values should be treated as example reference dimensions, not universal design rules.
| Dimension | Example Reference Range | Why It Matters |
|---|---|---|
| Thread size | M2.5 | Defines the screw size used in the assembly. |
| Printed hole diameter | Example: around 3.6–4.1 mm, depending on insert style | Affects insertion fit, plastic flow, torque resistance, and boss stress. |
| Insert outside diameter | Example: around 4.0–4.4 mm, depending on insert geometry | Determines how much surrounding boss material is needed. |
| Insert length | Often around 3.5–5.6 mm, depending on insert style | Affects boss depth, screw engagement, pull-out strength, and seating control. |
| Boss outside diameter | Depends on insert OD and wall thickness requirement | Helps prevent cracking, edge breakout, and weak insert support. |
| Wall thickness around insert | Depends on load and material | Controls cracking risk and load distribution around the insert. |
For smaller insert comparison, see M2 Heat Set Insert Dimensions Reference for 3D Printed Parts. For the next common size, see M3 Heat Set Insert Dimensions Reference.
Why M2.5 Inserts Are Useful in 3D Printed Parts
M2.5 inserts are useful when M2 may be too small for the load, but M3 may require more space than the part can provide. This makes M2.5 a practical middle size for compact engineering structures.
Common use cases include:
- electronics enclosures
- sensor brackets
- camera mounts
- small robot panels
- battery access covers
- compact service panels
- prototype modules
- lightweight fixtures
- thin mounting plates
- small removable covers
M2.5 can provide more thread engagement and fastening area than M2, while still fitting into parts where M3 bosses may be too large.
M2.5 Heat Set Insert Hole Size Considerations
For the next sizing step, see M2.5 heat set insert hole size.
The printed hole for an M2.5 heat set insert should be based on the actual insert body geometry, not only on the M2.5 screw size. The important dimensions are the insert outside diameter, knurl diameter, pilot diameter, body length, and supplier-recommended hole size.
A good M2.5 insert hole should:
- guide the insert straight during installation
- allow enough plastic flow around the knurl pattern
- avoid excessive looseness that reduces torque resistance
- avoid excessive interference that cracks the boss
- provide enough depth for full insert seating
- avoid pushing plastic into the internal thread
The designed CAD hole and the actual printed hole may not match perfectly. Small holes often print undersized, especially on FDM printers. A test coupon is useful before committing the hole size to the final part.
For broader hole design rules, see the Heat Set Insert Hole Size Guide.
Boss Diameter and Wall Thickness for M2.5 Inserts
For structural support limits, check the minimum wall thickness reference.
For boss sizing geometry, compare this value with the boss OD ratio reference.
The boss around an M2.5 heat set insert must provide enough plastic to support the insert during installation, screw tightening, and repeated use. If the boss wall is too thin, the insert may crack the boss or deform the surrounding plastic.
For M2.5 inserts, the boss should be designed around the largest outside diameter of the insert, not only around the M2.5 screw thread. The outer knurled diameter controls how much plastic is displaced during heat insertion.
When designing an M2.5 boss, check:
- largest insert outside diameter
- recommended printed hole diameter
- remaining boss wall thickness
- distance from the insert to nearby edges
- layer orientation of the printed part
- expected tightening torque
- whether the screw will be removed repeatedly
For boss geometry principles, see How to Design Bosses for Heat Set Inserts.
Insert Length and Boss Depth
The boss depth should be greater than the insert length. If the boss is too shallow, the insert may bottom out, sit proud of the surface, or push molten plastic into the thread.
For M2.5 inserts, depth control is important because the insert is often used in compact parts where there may be limited material below the insert.
A practical boss depth check should include:
- the full insert length must fit inside the boss
- there should be enough material below the insert to support the load
- the screw should not bottom out below the insert
- the insert should not be pushed too deep during installation
- displaced plastic should not block the internal thread
If the insert must sit flush with the printed surface, the printed hole depth and installation control become more important.
Screw Engagement Length for M2.5 Inserts
Screw engagement length should be long enough to provide stable clamping, but not so long that the screw bottoms out inside the insert or below the boss.
M2.5 screws are often used in compact assemblies, where the part thickness, cover thickness, washer thickness, and boss depth may all be limited. A screw that is too short may not provide enough thread engagement. A screw that is too long may create false tightening resistance or damage the insert joint.
When selecting screw length, check:
- insert internal thread depth
- part thickness
- mating component thickness
- washer thickness, if used
- required clamp force
- clearance below the insert
- whether the assembly will be opened repeatedly
For deeper design logic, see Screw Engagement Length for Heat Set Inserts in 3D Printed Parts.
Pull-Out and Torque Resistance
M2.5 heat set insert reliability depends on both pull-out strength and torque resistance. Pull-out strength describes how well the insert resists being pulled out along its axis. Torque resistance describes how well the insert resists spinning inside the printed boss during screw tightening.
These properties depend on:
- insert length
- insert outside diameter
- knurl pattern
- printed hole size
- boss diameter
- boss depth
- material behavior
- installation temperature
- screw tightening torque
For deeper engineering background, see Pull-Out Strength of Heat Set Inserts in 3D Printed Parts and Torque Resistance of Heat Set Inserts in 3D Printed Parts.
Material Behavior: PLA, PETG, ABS, and Nylon
M2.5 heat set insert performance depends strongly on the printed material.
PLA is stiff and can provide good dimensional control, but it may crack if the hole is too tight, the boss is too thin, or the insert is overheated. PETG is tougher, but it may creep under sustained screw preload. ABS can tolerate installation heat better than PLA, but still depends on hole fit and boss design. Nylon and carbon fiber nylon may offer better toughness, but printed tolerance, moisture behavior, and local stress concentration should still be checked.
The same M2.5 insert may need different hole tuning in different materials. A hole that works well in PETG may be too loose or too tight in another material.
For material comparison, see PLA vs PETG vs ABS for Threaded Inserts.
M2.5 vs M2 and M3 Inserts
M2.5 inserts are often selected when the design needs more fastening strength than M2 but less space than M3. This makes the size useful for compact parts that still need serviceable metal threads.
| Insert Size | Typical Use Case | Design Tradeoff |
|---|---|---|
| M2 | Very small electronics, compact covers, low-load fastening | Small footprint, but limited strength and boss margin. |
| M2.5 | Compact brackets, sensor mounts, small service panels | More robust than M2, but still smaller than M3. |
| M3 | General 3D printed assemblies, stronger covers, fixtures | More common and stronger, but requires more boss space. |
For small parts, the best size is not always the smallest insert that fits. The surrounding plastic structure must still have enough material to support the insert.
Recommended Design Checks Before Printing
Before finalizing an M2.5 heat set insert design, check these items:
- Confirm the actual manufacturer dimensions of the insert.
- Measure the largest outside diameter of the insert body.
- Confirm the recommended hole size from the supplier.
- Add enough boss wall thickness around the insert.
- Add enough boss depth for the full insert length.
- Confirm screw length and thread engagement.
- Check edge distance and nearby thin walls.
- Print a test coupon before committing to the final part.
- Test insertion temperature and insertion force.
- Test screw tightening torque after cooling.
For compact insert sizes like M2.5, a test coupon is often more reliable than assuming the CAD hole will print exactly as designed.
Common M2.5 Heat Set Insert Design Mistakes
Using M2.5 Screw Size as the Hole Size
The printed hole should match the insert body geometry, not the screw thread size. M2.5 refers to the internal thread, not the outside diameter of the insert.
Hole Too Large
If the printed hole is too large, the melted plastic may not fully flow into the knurl pattern. This can reduce torque resistance and allow the insert to spin.
See also: Why Do Heat Set Inserts Spin in 3D Printed Parts?
Hole Too Small
If the hole is too small, the insert may force too much plastic outward during installation. This can crack the boss, deform the wall, or push plastic into the thread.
See also: Why Do Bosses Crack Around Heat Set Inserts?
Boss Too Thin
If the boss is too thin around the insert, the structure may crack during insertion or fail during screw tightening. Compact parts using M2.5 inserts still need enough plastic around the insert body.
Screw Too Long
A screw that is too long may bottom out inside the insert or below the insert. This can push the insert upward, damage the boss, or create false tightening torque.
No Test Coupon
Because M2.5 inserts are used in compact structures, print tolerance matters. A test coupon can reveal whether the hole prints too tight, too loose, oval, rough, or inconsistent across materials.
Practical Reference Summary
M2.5 heat set insert dimensions should be treated as insert-specific engineering data, not as a universal value. The most important dimensions are insert length, outside diameter, knurl diameter, printed hole size, boss wall thickness, boss depth, and screw engagement length.
M2.5 is useful when M2 is too small and M3 requires too much space. It can be a strong middle-size option for compact 3D printed assemblies, but only if the boss geometry, hole size, screw length, and material behavior are checked together.
A good M2.5 insert design is not just a threaded metal sleeve in a printed hole. It is a compact fastening structure that must survive heat installation, screw tightening, repeated use, and long-term material behavior.
FAQ
What is a typical hole size for an M2.5 heat set insert?
Some references list M2.5 heat set insert hole sizes around 4.1 mm, while other insert styles use smaller pilot hole dimensions. The correct hole size depends on the insert manufacturer, geometry, printed material, and printer tolerance.
Can I use the same hole size for all M2.5 heat set inserts?
No. M2.5 heat set inserts can have different outside diameters, knurl profiles, pilot shapes, and lengths. The printed hole should match the actual insert geometry and supplier recommendation.
Is M2.5 stronger than M2?
In many compact assemblies, M2.5 can provide more screw engagement and insert body area than M2. However, the actual strength depends on boss design, material behavior, hole size, insert length, and screw loading.
When should I use M2.5 instead of M3?
M2.5 may be useful when M3 requires too much boss space but M2 feels too small for the load or service requirement. It is often used in compact brackets, electronics housings, and small service panels.
Why do M2.5 inserts spin in 3D printed parts?
M2.5 inserts can spin if the hole is too large, the plastic does not flow into the knurl pattern, the boss is too weak, or the screw torque exceeds the joint’s torque resistance.
Should I print a test coupon for M2.5 heat set inserts?
Yes. M2.5 inserts are sensitive to print tolerance, especially in compact parts. A test coupon helps verify hole size, insertion depth, installation temperature, and screw tightening behavior before using the design in a final part.
