M2.5 Heat Set Insert Hole Size for 3D Printed Parts

M2.5 heat set insert hole size for 3D printed parts depends on the insert’s outer diameter, knurl geometry, material, printed hole tolerance, boss wall thickness, hole depth, and whether the part has enough space for a reliable boss.

M2.5 inserts sit between M2 and M3. They are useful when M2 feels too small for the fastening requirement, but M3 needs more space than the part can provide. This makes M2.5 a bridge size for compact electronics, small service covers, light brackets, sensor mounts, and thin 3D printed assemblies.

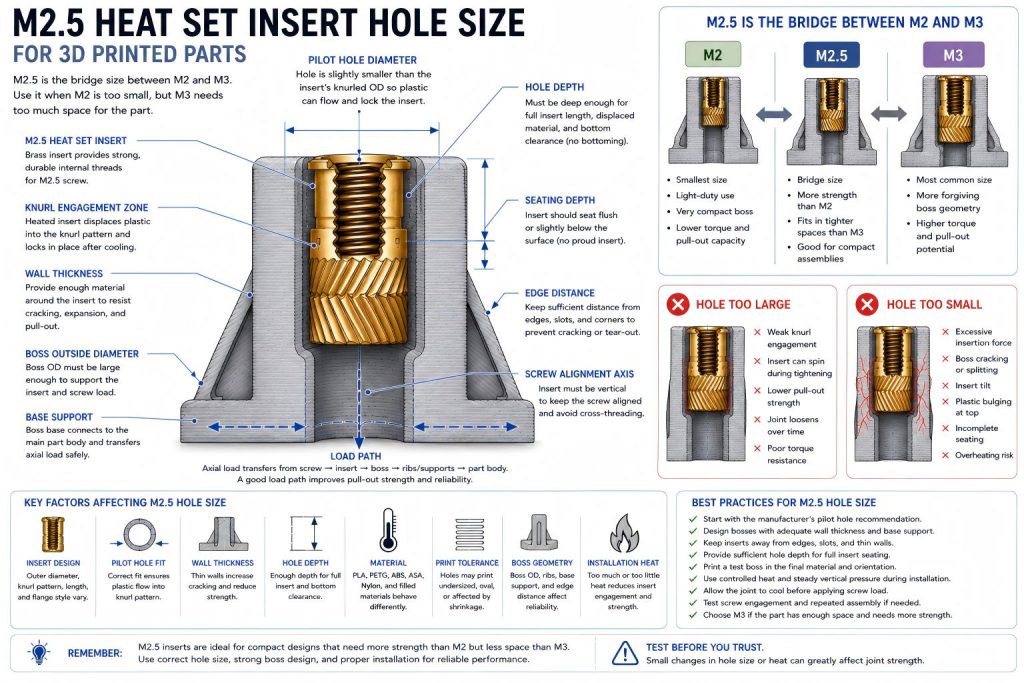

This guide explains how to think about M2.5 heat set insert hole size without treating one generic number as universal. Always start with the insert manufacturer’s drawing, then validate the pilot hole in the actual printed material and boss geometry.

What Is the Recommended Hole Size for an M2.5 Heat Set Insert?

There is no single universal hole size for every M2.5 heat set insert. Insert outer diameter varies by manufacturer, insert length, knurl pattern, flange design, and body style.

The correct starting point is the manufacturer’s recommended pilot hole diameter for the exact M2.5 insert being used. In a 3D printed part, the pilot hole is usually designed slightly smaller than the insert’s outer knurled diameter so the heated insert can displace softened plastic into the knurl pattern.

If the hole is too large, the insert may not develop enough grip after cooling. If the hole is too small, the boss may crack, deform, or force the insert to tilt during installation.

Why M2.5 Hole Size Needs Its Own Guide

M2.5 is not simply a smaller M3 or a stronger M2. It is often used where the designer is balancing limited space against the need for more screw engagement or slightly better fastening strength.

M2.5 heat set inserts are common in:

• Small electronics housings
• Compact service covers
• Sensor brackets
• Lightweight robotics parts
• Small RC or drone components
• Thin mounting tabs
• PCB-adjacent printed structures

These parts often have more space than an M2 boss, but not enough room for a comfortable M3 boss. That makes hole size, wall thickness, and edge distance especially important.

M2.5 as a Bridge Between M2 and M3

M2 inserts are useful for very small parts and light screw loads. M3 inserts are widely used and often provide more forgiving boss geometry. M2.5 sits between them.

M2.5 may be useful when:

• M2 feels too small for repeated screw use.
• M3 requires too much boss diameter.
• The part needs a small but serviceable screw joint.
• The boss has enough material for more than M2 but not enough for M3.
• The assembly uses M2.5 screws because of surrounding hardware constraints.

However, M2.5 should still be treated as a small-feature fastening size. It does not remove the need for proper hole control, wall thickness, and test fitting.

Key Variables That Affect M2.5 Heat Set Insert Hole Size

Variable	Why It Matters
Insert outer diameter	The knurled body diameter defines the basic pilot hole range.
Insert length	Longer M2.5 inserts need enough hole depth and boss height.
Knurl geometry	The knurl pattern controls how the insert locks into softened plastic.
Printed material	PLA, PETG, ABS, ASA, nylon, and filled materials soften and deform differently.
Boss wall thickness	Thin walls around an M2.5 insert increase cracking and spin-out risk.
Hole depth	The hole must allow full seating without bottoming or reducing screw engagement.
Print tolerance	Small holes often print undersized or slightly oval.
Edge distance	M2.5 bosses near edges or thin tabs may split during insertion or service.
Insertion heat	Too much heat can over-soften small bosses; too little heat increases insertion force.

M2.5 Hole Size Is Still a Small-Feature Tolerance Problem

M2.5 inserts are slightly more forgiving than M2, but they are still small compared with normal 3D printed feature variation. Printer calibration, extrusion width, slicer settings, material shrinkage, and seam placement can all affect the final hole.

Small pilot holes may print smaller than the CAD model. A nominal hole that appears correct in CAD may be too tight after printing, especially in PLA or with over-extrusion. A hole may also be rough, oval, or partly closed by layer seams.

For this reason, M2.5 pilot holes should be validated with a test boss rather than copied blindly from a table.

Hole Too Large: Common M2.5 Insert Problems

If the M2.5 pilot hole is too large, the insert may enter easily but fail to develop enough mechanical lock after cooling.

Possible oversized-hole symptoms include:

• The insert pushes in with very little resistance.
• The insert spins during screw tightening.
• The screw feels loose after assembly.
• The insert pulls out under light axial force.
• The joint weakens after repeated screw removal.
• The plastic does not visibly engage the knurl pattern.

Oversized holes are especially risky when the boss is thin or the part will be opened repeatedly.

Hole Too Small: Common M2.5 Insert Problems

If the M2.5 pilot hole is too small, insertion force can rise quickly. The boss may crack, the insert may tilt, or molten plastic may bulge around the seating surface.

Possible undersized-hole symptoms include:

• The boss cracks during installation.
• The insert does not seat fully.
• The insert tilts relative to the screw axis.
• Plastic bulges around the top of the hole.
• The hole bottom fills with displaced plastic.
• The screw does not align cleanly after insertion.

This risk is common in thin PLA bosses, edge locations, and compact parts with little surrounding wall thickness.

Material Considerations for M2.5 Heat Set Insert Holes

PLA

PLA can print small M2.5 holes accurately, but it can crack if the hole is too tight or the boss wall is thin. Controlled heat and light vertical pressure are important during installation.

PETG

PETG is more ductile than PLA, which may reduce immediate cracking risk, but it can soften and deform if overheated. M2.5 inserts in PETG should be checked for repeated screw use and long-term preload behavior.

ABS and ASA

ABS and ASA may tolerate heat better, but small M2.5 bosses still depend on print quality, layer adhesion, and accurate holes. Warped parts or weak layers can reduce insert reliability.

Nylon and Filled Materials

Nylon and fiber-filled materials may behave differently depending on formulation, moisture, and fiber content. M2.5 insert holes in these materials should be tested because surface texture and heat response may differ from PLA or PETG.

Blind Holes vs Through Holes for M2.5 Inserts

M2.5 inserts are often used in compact parts where hole depth is limited. Blind holes can work, but they must provide enough depth for the insert length, seating depth, and displaced plastic.

If the blind hole is too shallow, the insert may sit proud of the surface or reduce usable screw engagement. If the hole is deep enough but uncontrolled, the insert may sink below the intended seating plane.

Through holes reduce bottoming risk but require careful installation so the insert does not pass too far through the part.

Boss Geometry Around M2.5 Heat Set Insert Holes

After defining the pilot hole, confirm M2.5 boss design so the surrounding plastic can support the insert.

M2.5 bosses need enough wall thickness and edge distance to support the insert. The boss can usually be smaller than an M3 boss, but it should not be designed as if it were an M2 boss carrying no meaningful load.

Before finalizing the M2.5 pilot hole, check:

• Is the boss outside diameter large enough?
• Is there enough wall thickness around the insert?
• Is the insert too close to an edge, slot, thin wall, or corner?
• Is the hole deep enough for the insert length?
• Will the screw be removed repeatedly?
• Does the part need M2.5 because of space, or would M3 be more reliable?

If the boss is too weak, changing the hole diameter alone will not create a reliable joint.

M2.5 vs M3 Hole Size Decision

The choice between M2.5 and M3 should not be based only on screw size. It should be based on the available boss geometry and the load requirement.

Choose M2.5 when:

• The part cannot comfortably fit an M3 boss.
• The load is light to moderate.
• The assembly needs more screw size than M2 but still has compact geometry.
• The boss can provide enough support for M2.5 but not for M3.

Choose M3 when:

• The part has enough space for a larger boss.
• The joint needs more forgiving installation tolerance.
• The screw will be removed often.
• The joint needs better torque resistance or pull-out margin.
• The boss geometry would not be overly large for the part.

M2.5 is most useful when it solves a space problem without reducing the joint below the required strength.

Common Mistakes With M2.5 Heat Set Insert Hole Size

• Assuming M2.5 is close enough to M3 to use the same hole strategy.
• Using a generic M2.5 hole size without checking the insert drawing.
• Ignoring small-hole print tolerance.
• Placing the insert too close to thin walls or edges.
• Using too much heat in a compact boss.
• Choosing M2.5 when the part really needs M3 strength.
• Choosing M2.5 when M2 would be enough and save space.
• Using a blind hole that is too shallow.
• Testing only insertion fit, not screw engagement or repeated assembly.

Recommended Design Process for M2.5 Pilot Holes

1. Start with the exact insert manufacturer’s pilot hole recommendation.
2. Check the insert’s outer knurled diameter, length, and body style.
3. Confirm printed hole accuracy with the final material and slicer settings.
4. Design enough boss wall thickness and edge distance.
5. Check hole depth, insert seating depth, and screw engagement.
6. Print a test boss in the same material and orientation as the final part.
7. Install the insert with controlled heat and steady vertical pressure.
8. Check for cracking, tilt, proud seating, and plastic bulging.
9. Validate screw alignment and repeated assembly if the part will be serviced.
10. Use M3 instead if the M2.5 joint feels marginal and the part has enough space.

Related Engineering Guides

After selecting the pilot hole, verify the full M2.5 insert installation process.

• M2 Heat Set Insert Hole Size for 3D Printed Parts
• M3 Heat Set Insert Hole Size for 3D Printed Parts
• M4 Heat Set Insert Hole Size for 3D Printed Parts
• M5 Heat Set Insert Hole Size for 3D Printed Parts
• Should I Use M2.5 or M3 Heat Set Inserts in 3D Printed Parts?
• Heat Set Insert Hole Size Guide
• How to Design Bosses for Heat Set Inserts

Related Engineering References

• M2.5 Heat Set Insert Dimensions Reference for 3D Printed Parts
• M2 Heat Set Insert Dimensions Reference for 3D Printed Parts
• M3 Heat Set Insert Dimensions Reference
• Heat Set Insert Hole Depth Chart for 3D Printed Parts
• Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts
• Heat Set Insert Seating Depth Reference for 3D Printed Parts

Conclusion

M2.5 heat set insert hole size should be selected from the exact insert drawing and validated in the printed part geometry. M2.5 is useful when M2 is too small and M3 is too large, but it still requires careful pilot hole control, boss wall thickness, hole depth, screw alignment, and test fitting.

For compact 3D printed assemblies, M2.5 can be a useful bridge size only when the printed boss has enough support to make the insert reliable.
