M2 Brass Heat Set Inserts for 3D Printed Parts are small threaded metal inserts used when compact printed components need reusable M2 screw threads. They are common in electronics housings, small sensor mounts, miniature mechanisms, lightweight brackets, compact covers, and printed parts where space is limited.
M2 heat set inserts are useful, but they are less forgiving than larger inserts. Because the insert body is small, the surrounding boss, wall thickness, pilot hole, installation temperature, screw preload, and print quality all become more sensitive. A design that works with an M3 insert may crack, deform, or loosen when scaled down to M2 without changing the surrounding geometry.

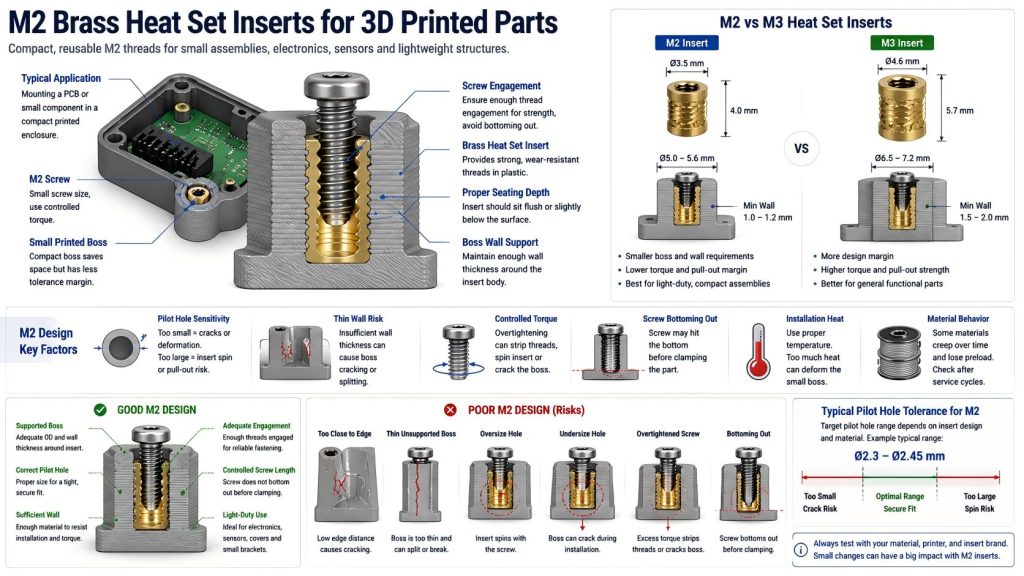

This page explains where M2 brass heat set inserts make sense, where they create risk, and how to design printed parts around their small size.
What Makes M2 Brass Heat Set Inserts Different?
M2 inserts are designed for small screws. Their main advantage is compactness. They allow a printed part to use machine screws in places where an M3 boss would be too large or visually bulky.
The trade-off is reduced tolerance margin. A small change in hole size, boss wall thickness, installation depth, screw torque, or print quality can have a larger effect than it would with a larger insert. M2 inserts need careful geometry because the plastic volume around them is limited.
In practical terms, M2 inserts are not simply smaller M3 inserts. They should be treated as small precision fastening features.
Common Use Cases
M2 brass heat set inserts are usually used in small printed parts where light-duty fastening and compact screw size matter more than maximum pull-out strength.
- small electronics enclosures
- sensor brackets and sensor boards
- compact PCB mounting bosses
- limit switch mounts
- small covers and access panels
- lightweight drone or robotics accessories
- miniature brackets
- low-load hinge covers
- small test fixture components
- prototype device housings
For application examples involving small switch and sensor structures, see Heat Set Inserts for Adjustable Camera and Sensor Mounts and Heat Set Inserts for 3D Printed Limit Switch Mounts.
When M2 Inserts Are a Good Choice
M2 inserts are a good choice when the part is compact, the load is light, and the screw may need to be removed more than once. They are especially useful when direct plastic threads would wear out or when the part needs a cleaner serviceable assembly.
M2 inserts are often appropriate when:
- the printed part is small and cannot support an M3 boss
- the screw only holds a light cover, board, switch, or small bracket
- the assembly needs repeated access or service
- the screw load is mostly clamping, not heavy pull-out
- the insert can be placed in a well-supported boss
- there is enough wall thickness around the insert body
- the design has controlled screw torque and screw engagement
For repeated assembly behavior, see Heat Set Inserts for Repeated Assembly in 3D Printed Parts.
When M2 Inserts May Be Too Small
M2 inserts are not ideal when the joint must resist high pull-out load, high vibration, repeated impact, strong screw preload, or frequent rough handling. In these cases, M3 or larger inserts may provide more design margin.
M2 inserts may be risky when:
- the screw carries structural load
- the boss is very thin or unsupported
- the insert is close to an edge or corner
- the part will see vibration or repeated impact
- the screw must be tightened strongly to clamp the assembly
- the material is brittle or printed with weak layer adhesion
- the insert sits in a narrow tab or thin wall
- the assembly depends on the insert for high torque resistance
If the printed geometry has room for M3, M3 may be the safer choice for functional assemblies. M2 is valuable when space is constrained, but it should not be used just to make a design look smaller.
M2 vs M3 Heat Set Inserts
The most common comparison is between M2 and M3 inserts. M2 saves space, while M3 usually provides more strength, more screw engagement, and more installation tolerance.
| Feature | M2 Insert | M3 Insert |
|---|---|---|
| Typical use | Small electronics, sensors, light covers | General functional printed parts and brackets |
| Space requirement | Lower | Higher |
| Boss design margin | Smaller | Larger |
| Torque tolerance | Lower | Higher |
| Pull-out margin | Lower | Higher |
| Best design use | Compact, low-load fastening | More robust serviceable fastening |
For M3-specific reference content, see M3 Brass Heat Set Inserts for 3D Printed Parts and M3 Heat Set Insert Dimensions Reference.
Boss Design for M2 Inserts
The boss around an M2 insert is often the weakest part of the joint. Because the insert is small, designers may place it in very small printed features. This can create cracking, insert spin, wall splitting, or poor preload retention.
A good M2 boss should have enough plastic around the insert to resist installation heat, screw tightening torque, and service loads. The boss should not be a thin hollow tower or a narrow tab unless the load is extremely light.
Important boss design practices include:
- use enough outside diameter around the insert
- keep enough wall thickness between the insert and the boss edge
- avoid placing M2 inserts near sharp corners
- add ribs or support walls when the boss is tall
- avoid unsupported thin ears for switch or PCB screws
- use fillets where the boss meets the base
- avoid heavy screw torque in small bosses
- check print orientation so the boss does not split along layer lines
For boss design, see How to Design Bosses for Heat Set Inserts and Boss OD Ratio for Heat Set Inserts in 3D Printed Parts.
Pilot Hole Size and Installation Sensitivity
M2 inserts are sensitive to pilot hole size. If the pilot hole is too small, the insert may force too much plastic outward and crack the boss. If the pilot hole is too large, the insert may not grip enough plastic and can spin during screw tightening.
Because the insert and boss are small, even minor print variation can matter. Nozzle size, material shrinkage, slicer settings, hole compensation, layer height, and actual insert geometry can all affect the fit.
Good practice includes printing a small test coupon before committing to a final part. This is especially important when using a new insert supplier, a new material, or a small boss near a thin wall.
For M2 dimensions, see M2 Heat Set Insert Dimensions Reference for 3D Printed Parts. For general hole sizing, see Heat Set Insert Hole Size Guide and Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts.
Installation Temperature and Seating Depth
M2 inserts are easy to overheat because they have less mass and are installed into smaller plastic features. Too much heat can soften the boss excessively, deform the surrounding feature, or push molten plastic into the thread area.
The insert should be seated straight and controlled carefully. If it tilts during installation, the screw may not align correctly. If it sits too proud, the attached part may not seat flat. If it is pushed too deep, the boss may deform or the screw stack-up may change.
Important installation points include:
- use controlled heat and steady vertical pressure
- avoid forcing the insert before the plastic softens
- keep the insert square to the hole
- avoid overheating small bosses
- allow the plastic to cool before loading the insert
- check that the screw can engage without cross-threading
- avoid installing inserts too close to delicate walls or cosmetic surfaces
For installation guidance, see Heat Set Insert Installation Temperature for 3D Printed Parts and Heat Set Insert Seating Depth Reference for 3D Printed Parts.
Screw Engagement and Torque Control
M2 screws are small. It is easy to strip, overtighten, or bottom out the screw without realizing it. In a small printed boss, excessive torque can spin the insert or crack the surrounding plastic.
The screw should engage enough thread to hold the joint, but it should not bottom out inside the insert before clamping the part. A screw that feels tight may not be creating real clamp force if it has reached the bottom of the insert or hole.
Good practice includes:
- checking screw length against the final stack-up
- using controlled torque instead of hand force alone
- avoiding long screws that bottom out
- avoiding very short screws with poor thread engagement
- using washers when clamping soft or thin parts
- checking preload after repeated assembly cycles
For thread engagement, see Screw Engagement Length for Heat Set Inserts in 3D Printed Parts. For tightening behavior, see Heat Set Insert Torque Range Reference for 3D Printed Parts.
Material Considerations
M2 inserts are affected strongly by material behavior because the surrounding boss is small. A brittle material may crack during installation. A creep-prone material may lose preload over time. A weakly printed material may split along layer lines.
| Material | M2 Insert Behavior | Design Note |
|---|---|---|
| PLA | Stiff and easy to print, but brittle in small bosses | Avoid tight holes, thin walls, and excessive installation heat. |
| PETG | Tougher than PLA, but may relax under screw preload | Check for screw loosening and preload loss after service cycles. |
| ABS | Useful for functional small parts with better heat tolerance | Check layer adhesion and boss support. |
| ASA | Good for exposed small brackets and covers | Maintain wall thickness and avoid sharp stress paths. |
| Nylon | Tough, but may creep or absorb moisture | Use locating geometry and avoid relying only on screw preload. |
| Fiber-filled materials | Stiff and stable, but less forgiving in tiny bosses | Use fillets, adequate wall thickness, and careful pilot hole testing. |
For material comparison, see PLA vs PETG vs ABS for Threaded Inserts and Layer Adhesion and Heat Set Insert Strength in 3D Printed Parts.
Common Failure Modes
M2 heat set insert failures often come from the printed geometry around the insert, not from the brass insert itself. The smaller the insert, the less room there is for geometry mistakes.
- boss cracking during installation
- insert spin during screw tightening
- thin wall splitting near the insert
- screw bottoming out before clamp force is created
- thread misalignment from tilted installation
- plastic creep causing preload loss
- boss separating along layer lines
- insert pulling out of a thin tab
- small cover or PCB shifting after repeated service
- overheated boss deformation during installation
For related failure explanations, see Why Do Heat Set Inserts Spin in 3D Printed Parts?, Why Do Bosses Crack Around Heat Set Inserts?, and Why Do Heat Set Inserts Fail in Thin Wall 3D Printed Parts?.
Design Checklist
- Use M2 inserts for compact, low-load, serviceable fastening.
- Choose M3 instead when the joint needs more strength or torque margin.
- Give the M2 insert enough boss outside diameter and wall thickness.
- Avoid placing M2 inserts in thin unsupported tabs.
- Test pilot holes before printing final parts.
- Install with controlled heat and straight vertical pressure.
- Check seating depth so the attached part can sit flat.
- Use correct screw length to avoid bottoming out.
- Do not overtighten small M2 screws.
- Check preload loss in PETG, nylon, and other creep-prone materials.
Related Engineering Guides
- How to Choose Heat Set Inserts for 3D Printed Parts
- Heat Set Insert Hole Size Guide
- How to Design Bosses for Heat Set Inserts
- Screw Engagement Length for Heat Set Inserts in 3D Printed Parts
- Torque Resistance of Heat Set Inserts in 3D Printed Parts
- PLA vs PETG vs ABS for Threaded Inserts
Related Insert Type References
- M3 Brass Heat Set Inserts for 3D Printed Parts
- Short vs Long Heat Set Inserts for 3D Printed Parts
- Flanged vs Non-Flanged Heat Set Inserts for 3D Printed Parts
Related References
- M2 Heat Set Insert Dimensions Reference for 3D Printed Parts
- Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts
- Heat Set Insert Minimum Wall Thickness Reference for 3D Printed Parts
- Heat Set Insert Seating Depth Reference for 3D Printed Parts
- Heat Set Insert Assembly Stack-Up Reference for 3D Printed Parts
FAQ
Are M2 brass heat set inserts strong enough for 3D printed parts?
They can be strong enough for compact, low-load, serviceable fastening. They are not ideal for high-load brackets, high vibration, heavy preload, or structural joints unless the boss geometry is very well supported.
When should I choose M2 instead of M3 inserts?
Choose M2 when space is limited and the joint only needs light clamping or repeated service. Choose M3 when the design has enough room and needs more strength, torque margin, or assembly tolerance.
Why do M2 heat set insert bosses crack?
M2 bosses often crack because the pilot hole is too small, the boss wall is too thin, the insert is overheated, the insert is too close to an edge, or the screw is overtightened after installation.
Can M2 inserts be used for PCB mounting?
Yes. M2 inserts are commonly used for PCB mounting in printed enclosures, but the boss should be supported and the screw torque should be controlled to avoid cracking or insert spin.
Do M2 inserts need a different design approach than larger inserts?
Yes. M2 inserts have less plastic volume around them, so pilot hole tolerance, wall thickness, installation heat, screw length, and torque control become more sensitive.
