M5 Brass Heat Set Inserts for 3D Printed Parts

M5 Brass Heat Set Inserts for 3D Printed Parts are large threaded metal inserts used when printed parts need stronger reusable threads for heavy brackets, large fixtures, structural mounting points, machine accessories, and high-load serviceable assemblies.

M5 inserts can provide more screw engagement, higher preload capacity, and better fastening margin than smaller M3 or M4 inserts. However, M5 is not automatically stronger in a 3D printed part. If the printed geometry cannot support the required boss size, wall thickness, edge distance, seating depth, installation heat, and screw torque, the larger insert may crack the boss, deform the part, or fail through the surrounding plastic.

This page explains where M5 brass heat set inserts make sense, where they create risk, and how to design printed parts around their larger size and higher load potential.

What Makes M5 Brass Heat Set Inserts Different?

M5 inserts are larger than the common M2, M3, and M4 insert sizes used in compact 3D printed assemblies. Their main advantage is fastening capacity. They allow the use of larger screws, deeper thread engagement, higher clamp force, and more durable serviceable joints.

The trade-off is that M5 inserts need significantly more printed material around them. The boss must be larger, the wall must be thicker, the insert must sit far enough from edges and cutouts, and the screw load must transfer into a strong printed structure.

An M5 insert should be treated as part of a load-bearing fastening system, not just a bigger threaded hole.

Common Use Cases

M5 brass heat set inserts are usually used in larger 3D printed parts where the joint needs higher mechanical margin and the part has enough volume to support a large boss.

large fixture plates
heavy printed brackets
machine mounting blocks
industrial fixture components
robot base or frame attachments
structural service panels
modular tooling blocks
large workholding accessories
CNC fixture adapters
high-load hinge or clamp points
large battery or electronics enclosure mounts
printed parts that need stronger repeated assembly threads

When M5 Inserts Are a Good Choice

M5 inserts are a good choice when the printed part has enough space for a large reinforced boss and the joint needs more strength, preload, or service durability than M4 can reasonably provide.

M5 inserts are often appropriate when:

the printed part is large enough to support a wide boss
the joint carries meaningful mechanical load
the assembly needs higher clamp force
the part will be serviced or reassembled many times
the insert is used in a fixture, frame, machine accessory, or structural bracket
the load path is supported by thick printed geometry
the insert can be placed far enough from edges and cutouts
the material and print orientation can support higher screw preload

For repeated assembly behavior, see Heat Set Inserts for Repeated Assembly in 3D Printed Parts.

When M5 Inserts May Be Too Large

M5 inserts become risky when the printed part does not have enough material volume. A large insert placed in a small boss can create more stress than a smaller insert. In that situation, M5 does not strengthen the part. It simply asks weak plastic to carry a larger load.

M5 inserts may be a poor choice when:

the boss outside diameter is too small
the printed wall is too thin
the insert sits near an edge, corner, slot, or cutout
the part cannot provide enough seating depth
the screw head or washer area is too large for the assembly
the load path does not connect into the main printed body
the material is brittle or has weak layer adhesion
the joint only needs light-duty fastening
a well-supported M4 insert would be safer

The best insert size is not the largest size. It is the largest size that the printed geometry can support safely.

M5 vs M4 vs M3 Heat Set Inserts

M5 is often selected for large fixtures and heavy brackets, but it should not be chosen only because it looks stronger. M4 may be the better choice when the part cannot provide enough boss volume for M5. M3 may still be better for compact brackets, electronics covers, and small service panels.

Feature	M3 Insert	M4 Insert	M5 Insert
Typical use	General brackets, covers, electronics, small assemblies	Fixtures, motor brackets, mechanical panels, medium-load joints	Large fixtures, heavy brackets, structural mounting points
Space requirement	Moderate	Higher	Highest
Boss size requirement	Moderate	Larger boss needed	Very large boss needed
Preload capacity	Moderate	Higher	Highest if geometry supports it
Installation risk	Usually manageable	Higher heat and boss stress	Highest heat input and boss stress
Best design use	General-purpose fastening	Medium-duty mechanical fastening	Large load-bearing printed structures

For M4 dimensional planning, see M4 Heat Set Insert Dimensions Reference for 3D Printed Parts. For M5 dimensional planning, see M5 Heat Set Insert Dimensions Reference for 3D Printed Parts.

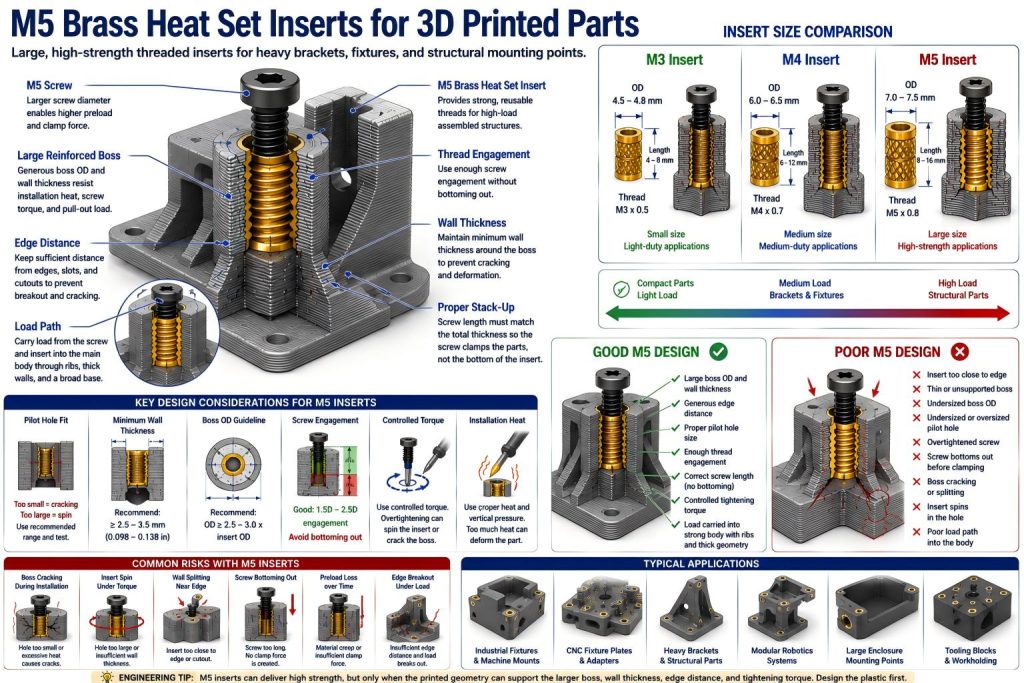

Boss Design for M5 Inserts

The boss around an M5 insert must be designed as a structural feature. A small boss that might work with M3 or M4 may not safely support the heat, radial expansion, screw preload, and torque associated with M5 hardware.

The most common mistake is enlarging the hole and insert size without enlarging the supporting boss. This can cause cracking during installation, insert spin during tightening, wall splitting, or edge breakout under load.

Important boss design practices include:

use a large enough boss outside diameter around the insert
maintain generous wall thickness between the insert and boss edge
keep M5 inserts far from edges, corners, slots, and cutouts
connect the boss to the main body with ribs or thick geometry
avoid tall unsupported boss towers
use large fillets at boss-to-body transitions
provide enough insert depth and screw engagement
avoid placing M5 inserts in thin tabs or narrow flanges
align the boss with the real load path
check print orientation so the boss does not split along layer lines

For boss design, see How to Design Bosses for Heat Set Inserts, Boss OD Ratio for Heat Set Inserts in 3D Printed Parts, and Heat Set Insert Minimum Wall Thickness Reference for 3D Printed Parts.

Edge Distance and Load Path

M5 inserts need more edge distance than smaller inserts because the larger screw and insert can apply higher force to the printed material. If the insert is close to an edge, the load may break out through the shortest wall rather than transfer into the part body.

For heavy brackets and fixture blocks, the load path matters as much as the insert itself. The screw force should move from the insert into a thick body, ribbed region, or structural wall. It should not terminate in a thin printed ear or unsupported corner.

Good design usually means:

placing M5 inserts well inside the part boundary
avoiding edge-adjacent bosses for high-load joints
using ribs behind the insert boss
using broad base geometry under the boss
aligning the screw load with the strongest printed direction
avoiding sharp transitions from boss to thin wall
using washers or broad clamping surfaces where needed

For edge planning, see Heat Set Insert Edge Distance Reference for 3D Printed Parts.

Pilot Hole Size and Installation Sensitivity

M5 inserts displace more plastic during installation than smaller inserts. If the pilot hole is too small, the insert can create high radial stress and crack the boss. If the pilot hole is too large, the insert may not develop enough grip and can spin under screw torque.

Because M5 inserts are often used in functional assemblies, the screw may be tightened more strongly. This makes pilot hole fit, material behavior, and boss support especially important.

Good practice includes:

measuring the actual insert outer diameter
printing test coupons for the chosen material and insert style
checking slicer hole compensation
allowing for material shrinkage or expansion
installing the insert square to the boss axis
using controlled heat and steady pressure
letting the plastic cool before applying screw preload
testing insert spin resistance before final assembly

For general hole sizing, see Heat Set Insert Hole Size Guide and Heat Set Insert Pilot Hole Tolerance Reference for 3D Printed Parts.

Installation Temperature and Seating Depth

M5 inserts need more heat than smaller inserts because they have more metal mass and more surface area. The larger heat input can soften a wider area of the printed part. If the boss is too thin or close to a wall, the installation process can distort the geometry before the screw is ever installed.

Seating depth is also important. If the insert sits too proud, the mating component may not sit flat. If the insert is pushed too deep, the boss may deform, the screw stack-up may change, or the insert may interfere with internal geometry.

Important installation points include:

use controlled heat rather than excessive temperature
apply steady vertical pressure
keep the insert square during installation
avoid forcing the insert before the plastic softens
avoid pushing the insert below the intended seating depth
allow the boss to cool before tightening the screw
check that the mating part sits flat after installation
check that the screw does not bottom out before clamping

For installation guidance, see Heat Set Insert Installation Temperature for 3D Printed Parts and Heat Set Insert Seating Depth Reference for 3D Printed Parts.

Screw Engagement and Torque Control

M5 screws can create significant clamp force. This is helpful in fixtures and structural mounting points, but it can also damage printed parts if the torque is not controlled.

The screw should engage enough thread to carry the intended load, but it should not bottom out before clamping the assembly. A screw that feels tight may only be hitting the bottom of the insert or hole, leaving the joint with little real preload.

Good practice includes:

checking screw length against the final assembly stack-up
using enough thread engagement for the intended load
avoiding screw bottoming before clamp force is created
using washers or broad clamp surfaces when needed
using controlled torque for load-bearing joints
avoiding hand-tightening by feel in critical assemblies
checking preload retention after service cycles
checking for creep in PETG, nylon, and other materials under sustained load

For thread engagement, see Screw Engagement Length for Heat Set Inserts in 3D Printed Parts. For tightening behavior, see Heat Set Insert Torque Range Reference for 3D Printed Parts. For stack-up planning, see Heat Set Insert Assembly Stack-Up Reference for 3D Printed Parts.

Pull-Out Strength and Torque Resistance

M5 inserts can provide high pull-out and torque resistance when the printed structure supports them. The larger insert can grip more plastic and use a larger screw, but the surrounding printed material still controls the real failure limit.

If the boss is too thin, the boss may split. If the insert is too close to an edge, the plastic may break out. If the print has poor layer adhesion, the boss may separate along layer lines. If the screw is overtightened, the insert can spin or crush the surrounding plastic.

Strength should be understood as a system:

insert diameter
insert length
boss outside diameter
wall thickness
edge distance
print orientation
layer adhesion
material creep
screw engagement
tightening torque
load direction
assembly stack-up

For strength behavior, see Pull-Out Strength of Heat Set Inserts in 3D Printed Parts and Torque Resistance of Heat Set Inserts in 3D Printed Parts.

Material Considerations

Material choice strongly affects M5 insert performance because the larger screw can apply higher preload and the installation process adds more heat to the printed boss.

Material	M5 Insert Behavior	Design Note
PLA	Stiff, but can crack around large bosses and high preload	Use generous wall thickness, avoid overtightening, and avoid hot environments.
PETG	Tougher than PLA, but may relax under sustained M5 preload	Check clamp force loss, creep, and bracket shift after service cycles.
ABS	Useful for functional mechanical parts with better heat tolerance	Check layer adhesion, boss support, and installation temperature control.
ASA	Useful for exposed brackets and machine-adjacent parts	Maintain edge distance and avoid sharp stress paths near bosses.
Nylon	Tough and vibration-tolerant, but may creep under high preload	Use locating geometry and avoid relying only on screw friction.
Fiber-filled materials	Stiff and dimensionally stable, but can be less forgiving around stress concentrations	Use fillets, ribs, enough wall thickness, and careful pilot hole testing.

For material comparison, see PLA vs PETG vs ABS for Threaded Inserts and Layer Adhesion and Heat Set Insert Strength in 3D Printed Parts.

Common Failure Modes

M5 insert failures often happen because the insert size exceeds what the printed geometry can support. The brass insert may be strong, but the plastic around it becomes the soft borderland where failures begin.

boss cracking during installation
insert spin under tightening torque
wall splitting near the boss
edge breakout under load
screw bottoming out before clamp force is created
boss deformation from excessive installation heat
preload loss in PETG or nylon
layer separation around the insert boss
fixture or bracket shifting after repeated service
overconfidence in M5 size without enough printed support
load path failure through thin surrounding geometry

Design Checklist

Use M5 inserts only when the printed part has enough volume for a large supported boss.
Choose M4 instead when M5 would force thin walls, weak edges, or cramped boss geometry.
Give the M5 insert generous boss outside diameter and wall thickness.
Keep M5 inserts away from edges, slots, corners, and cutouts.
Use ribs or thick geometry to connect the boss to the main part body.
Align the insert with the real load path.
Test pilot holes before printing final parts.
Install with controlled heat and straight vertical pressure.
Check seating depth so the mating part can sit flat.
Use correct screw length to avoid bottoming out.
Use controlled torque for functional or load-bearing joints.
Test the joint under real load, vibration, and service conditions.

Related Engineering Guides

Related Insert Type References

Related References

Related Applications

FAQ

Are M5 brass heat set inserts stronger than M4 inserts?

They can provide more fastening margin than M4 inserts when the printed boss is large enough. If the boss is too small, too thin, or too close to an edge, an M5 insert may damage the printed part instead of making it stronger.

When should I choose M5 instead of M4 inserts?

Choose M5 when the printed part has enough material for a large reinforced boss and the joint needs higher preload, stronger screw engagement, or more structural mounting capacity than M4 can provide.

When should I avoid M5 heat set inserts?

Avoid M5 inserts in thin walls, narrow tabs, compact brackets, weak edges, or parts without enough boss volume. A well-supported M4 insert is often better than an unsupported M5 insert.

Can M5 inserts be used in 3D printed fixtures?

Yes. M5 inserts can be useful in large fixture plates, tooling blocks, clamps, and machine accessories, but the printed structure must support the boss size, screw preload, torque, and load path.

Do M5 inserts require more installation heat?

Usually yes. M5 inserts are larger and require more heat input than smaller inserts. Too much heat can deform the boss, so controlled temperature, correct pilot hole size, and careful seating depth are important.
